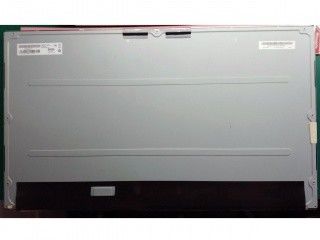

Product Details:
|
| MODEL NUMBER: | M270HGE-L30 Rev.C4 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 27.0INCH | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 81PPI |
| VIEWING ANGLEG: | 85/85/80/80 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | NTSC Lcd Video Panel,VGA Touch Lcd Video Display,RGB Vertical LCD Display |
||
| Basic Detail : | Manufacturer | Model Name | M270HGE-L30 Rev.C4 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 27.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 1.5/3.5 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.42 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 96% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.1038×0.3114 mm | Pixel Pitch(W×H) | 0.3114×0.3114 mm [81PPI] | |
| Physical Size : | Active Viewing | 597.888(W)×336.312(H) mm | Overall Dim. | 630(W)×368.2(H) mm |
| Bezel Opening | 603.9(W)×342.3(H) mm | Overall Depth | 10.3/14.6 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Normal bezel | |
| Other Detail : | Mass | 2.53±0.07Kgs | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Signal Electrical : | Input Current | 1.08/1.22A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 6.1W (Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||

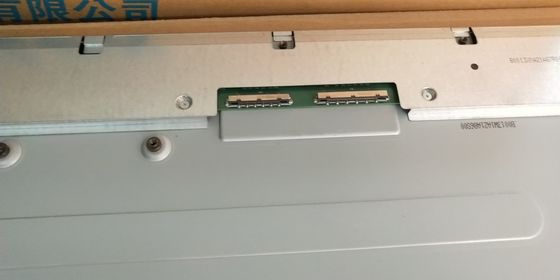

| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| P-TWO | 187114-30091 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type (Right side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 4 strings | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 75/80mA (Typ./Max.) | Input Voltage | 54.4/58.0V (Typ./Max.) | ||
| Consumption | 16.32/17.34W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| CviLux | CI1406M1HRK-NH | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 10 pcs / box | 713×429×453 mm | 29.7 Kgs |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
