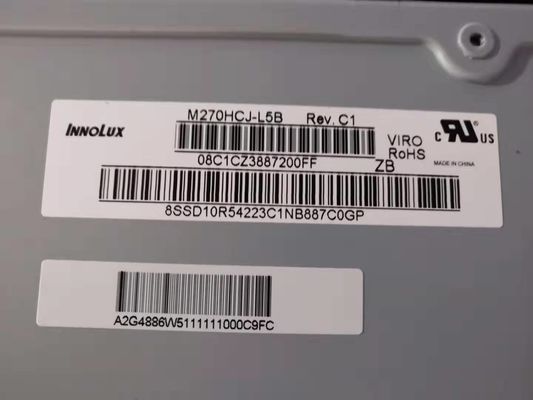

M270HCJ-L5B Innolux 27.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

M270HCJ-L5B Innolux 27.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
M270HCJ-L5B Innolux 27.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY M270HCJ-L5B Innolux 27.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY M270HCJ-L5B Innolux 27.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  M270HCJ-L5B Innolux 27.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: M270HCJ-L5B
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

M270HCJ-L5B Innolux 27.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: M270HCJ-L5B BRAND: INNOLUX
SIZE: 27.0 Inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080, FHD, 81PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10 TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Highlight:

NTSC Lcd Video Panel

,

VGA Touch Lcd Video Display

,

RGB Vertical LCD Display

Innolux M270HCJ-L5B Application Details

Basic Detail :
Manufacturer

M270HCJ-L5BModel Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
27.0 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C
RoHS

-Vibration Level





Innolux M270HCJ-L5B Optical Details

Basic Detail :
Luminance
250 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
8/7 (Typ.)(Tr/Td) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AAS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Variation
-
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
94% coverage
Adobe RGB
73% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux M270HCJ-L5B Mechanical Details

Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.1038×0.3114 mm
Pixel Pitch(W×H)
0.3114×0.3114 mm [81PPI]
Physical Size :
Active Viewing
597.888(W)×336.312(H) mm
Overall Dim.
607.1(W)×354.1(H) mm
Bezel Opening
-
Overall Depth
12.7/13.7 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
3-side borderless
Fixation :
Rear mounting holes (13 pcs)
Other Detail :
Mass
2.87/3.01Kgs (Typ./Max.)
Surface
Antiglare (Haze 25%), Hard coating (3H)



Innolux M270HCJ-L5B Interface Detail

Signal Electrical :
Input Current
0.6/0.7A (Typ./Max.)
Input Voltage
5.0V (Typ.)
Consumption
3.96/4.7W (Typ./Max.)
Signal Interface
LVDS (2 ch, 8-bit)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
P-TWO
187098-30091
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160A



Innolux M270HCJ-L5B Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
4 strings
Position
Edge light type
Exchange
-
Lamp Shape
4 strings
Lamp Life
30K(Min.) (Hours)
Lamp Electrical :
Input Voltage
31.7/39/42.9V (Min./Typ./Max.)
Input Current
85/90mA (Typ./Max.)
Consumption
13.26/14.59W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
CviLux
CI1406M1VL0-NH
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No

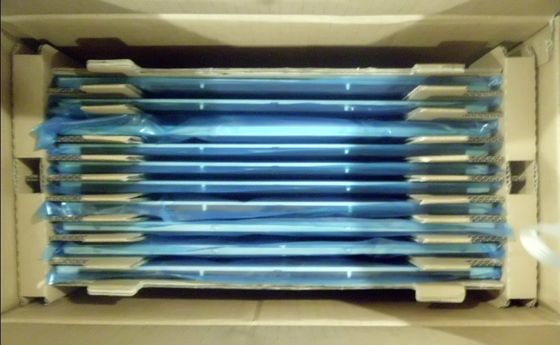

Innolux M270HCJ-L5B Packing Details

Package Box : Amount Size (L×W×H) Weight
8 pcs / box 28.4 Kgs 691×295×457 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
