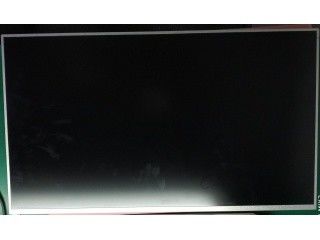

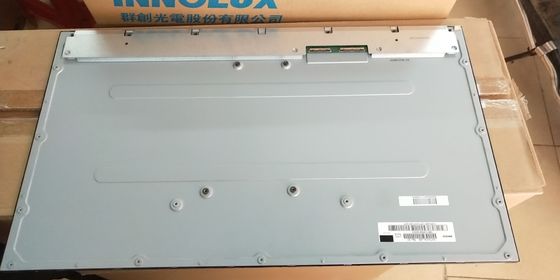

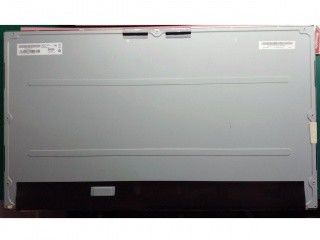

Product Details:
|
| MODEL NUMBER: | M270HCA-L7B | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 27.0INCH | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080, FHD, 81PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Highlight: | NTSC Lcd Video Panel,VGA Touch Lcd Video Display,RGB Vertical LCD Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| M270HCA-L7B | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 27.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.1038×0.3114 mm | 0.3114×0.3114 mm [81PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 597.888×336.312 mm | - | 607.13×354.11 mm | 9.0/13.3 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | 3-side borderless | |
| Fixation : | Rear mounting holes | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 2.87/3.01Kgs (Typ./Max.) | Antiglare (Haze 25%), Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.), HDR400 | AAS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 7 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 86% | 100% | 83% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 88% | 64% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.34/0.4A (Typ./Max.) | 12.0V (Typ.) | 6.38/7.66W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (4 ch, 8-bit) | |||||

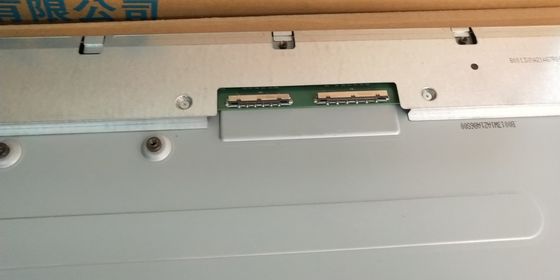

| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| P-TWO | 187059-51221 | 1 pcs | 0.5 mm | 51 pins | ||
| P-TWO | 187060-41221 | 1 pcs | 0.5 mm | 41 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 4 strings | 4 strings | 30K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 150/158mA (Typ./Max.) | 33/34.5/39.6V (Min./Typ./Max.) | 16.6/23.76W (Typ./Max.)(Normal/HDR) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| Connector | No | |||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| CviLux | CI1406M1VL0-NH | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 8 pcs / box | 28.4 Kgs | 691×295×457 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
