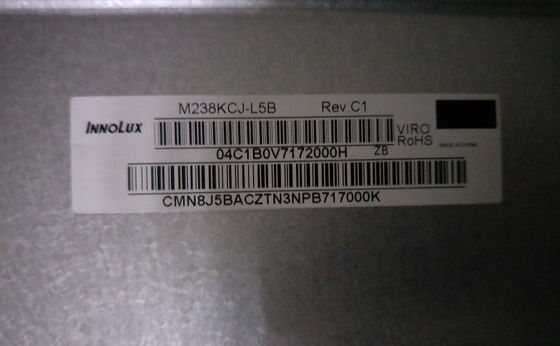

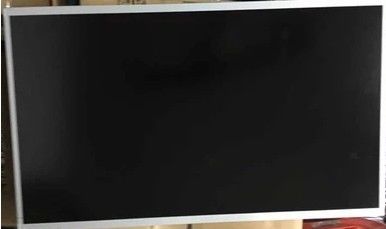

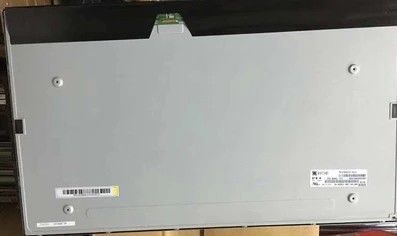

M238KCJ-L5B Innolux 23.8" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY

M238KCJ-L5B Innolux 23.8" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY
M238KCJ-L5B Innolux 23.8" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY M238KCJ-L5B Innolux 23.8" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY M238KCJ-L5B Innolux 23.8" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  M238KCJ-L5B Innolux 23.8" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: M238KCJ-L5B
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

M238KCJ-L5B Innolux 23.8" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: M238KCJ-L5B BRAND: INNOLUX
SIZE: 23.8"inch BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 2560(RGB)×1440, Quad-HD, 123PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Highlight:

NTSC Lcd Video Panel

,

VGA Touch Lcd Video Display

,

RGB Vertical LCD Display

Innolux M238KCJ-L5B Application Details

Basic Info :
Panel Brand

M238KCJ-L5BPanel Model
Diagonal Size
23.8"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C
RoHS State
Vibration Ratin

g



Innolux M238KCJ-L5B Mechanical Details

Pixel Features :
Pixel Format
2560(RGB)×1440, Quad-HD
Dot Pitch
0.06845×0.20535 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.20535×0.20535 mm (H×V) [123PPI]
Mechanical Size :
Display Area
525.696×295.704 mm (H×V)
Bezel Area
-
Outline Dim.
536.3×313.7 mm (H×V)
Outline Depth
9/14.9 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
3-side borderless
Holes & Brackets :
Rear mounting holes (9-M3)
Other Features :
Weight
2.40/2.52Kgs (Typ./Max.)
Surface
Antiglare (Haze 25%), Hard coating (3H)



Innolux M238KCJ-L5B Optical Details

Basic Information :
Brightness
300 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
AAS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
8/7 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (8-bit)
Color Temperature
6485K
Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
93%
sRGB
100% coverage
Adobe RGB
88% coverage
DCI-P3
94% coverage
Rec.2020
69% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Innolux M238KCJ-L5B Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
30K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type (Right side)
Lamp Electrical :
Voltage Input
24.32/29.17/33V (Min./Typ./Max.)
Current Input
130/138mA (Typ./Max.)
Consumption
15.17/17.16W (Typ./Max.)
Interface Features :
Type
Connector
Position

NoLamp Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
CviLux
CI1406M1VL0-NH
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC



Innolux M238KCJ-L5B Interface Detail

Signal Systerm :
LVDS (4 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
10.0V (Typ.)
Current Input
0.35/0.42A (Typ./Max.)
Consumption
4.4/5.3W (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
P-TWO
187059-51221
0.5 mm
51 pins
1 pcs

P-TWO
187060-4122
0.5 mm
41 pins
1 pcs








Innolux M238KCJ-L5B Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
12 pcs / box 28.8 Kgs 620×348×390 mm



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
