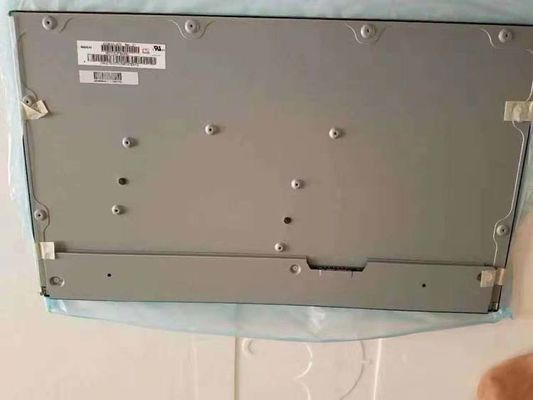

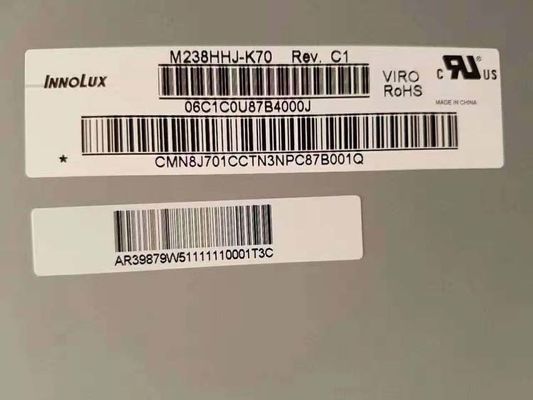

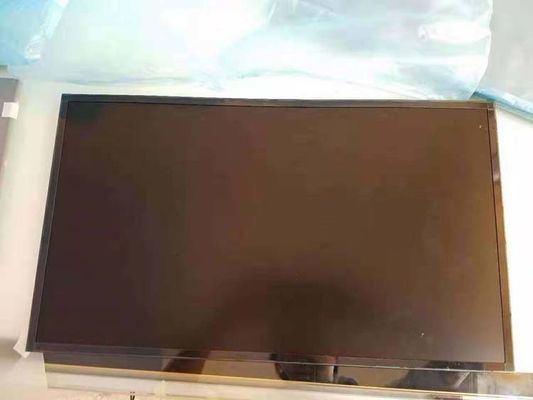

M238HHJ-K70 Innolux 23.8" 1920(RGB)×1080 400 cd/m² INDUSTRIAL LCD DISPLAY

Large Image : M238HHJ-K70 Innolux 23.8" 1920(RGB)×1080 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	INNOLUX
Certification:	ISO9001
Model Number:	M238HHJ-K70

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	200PCS

Contact Now

M238HHJ-K70 Innolux 23.8" 1920(RGB)×1080 400 cd/m² INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	M238HHJ-K70	BRAND:	INNOLUX
SIZE:	23.8 Inch	BRIGHTNESS:	400 Cd/m² (Typ.)
Lamp Type:	WLED	RESOLUTION:	1920(RGB)×1080, FHD, 92PPI
VIEWING ANGLEG:	85/85/80/80 (Typ.)(CR≥10)	TEMPERATURE RANGE:	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Highlight:	NTSC Lcd Video Panel , VGA Touch Lcd Video Display , RGB Vertical LCD Display

Innolux M238HHJ-K70 Application Details

Basic Detail :	Manufacturer M238HHJ-K70Model Name Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 23.8 inch Designed For
Maximum Ratings :	OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C RoHS Vibration Leve l

Innolux M238HHJ-K70 Optical Details

Basic Detail :	Luminance 400 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Good View at - Response Speed 3.5/1.5 (Typ.)(Tr/Td) ms Viewing Angle 85/85/80/80 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 16.2M (8-bit) Color Temperature 6485K White Variation 1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 74% sRGB 93% coverage Adobe RGB 72% coverage DCI-P3 75% coverage Rec.2020 55% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Innolux M238HHJ-K70 Mechanical Details

Pixel Features :	Number of Pixel 1920(RGB)×1080, FHD Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.0915×0.2745 mm Pixel Pitch(W×H) 0.2745×0.2745 mm [92PPI]
Physical Size :	Active Viewing 527.04(W)×296.46(H) mm Overall Dim. 551.04(W)×320.46(H) mm Bezel Opening 530.24(W)×299.66(H) mm Overall Depth 8.4/14.75 (Typ./Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 16:9 Shape Style Normal bezel
Fixation :	Rear mounting holes (14-M3)
Other Detail :	Mass 2.16/2.4/2.52Kgs (Min./Typ./Max.) Surface Antiglare (Haze 25%), Hard coating (3H)

Innolux M238HHJ-K70 Interface Detail

Signal Electrical :	Input Current 588/702mA (Typ./Max.) Input Voltage 12.0V (Typ.) Consumption 12.1/14.6W (Typ./Max.) Signal Interface V-by-One 8 lane
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment FCN WF23-402-5133 0.5 mm 51 pins 1 pcs

Innolux M238HHJ-K70 Lightting Details

Lamp Features :	Lamp Type WLED Amount - Position Edge light type Exchange - Lamp Shape - Lamp Life -
Lamp Electrical :	Input Voltage 36.4/43.1/46.2V (Min./Typ./Max.) Input Current 60/63mA (Typ./Max.) Consumption 20.68/22.2W (Typ./Max.)
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment FCN WM13-406-063N 1.0 mm 6 pins 2 pcs BLE-6PINS-CCAACC
Backlight Driver :	No

Innolux M238HHJ-K70 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	11 pcs / box	27.1 Kgs	620×348×430 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
