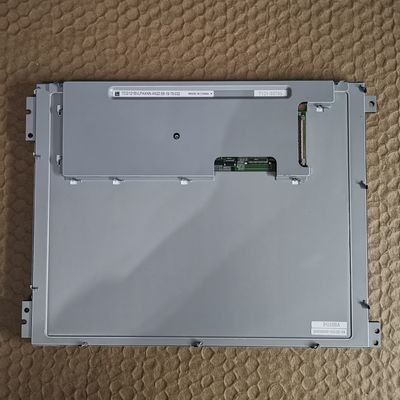

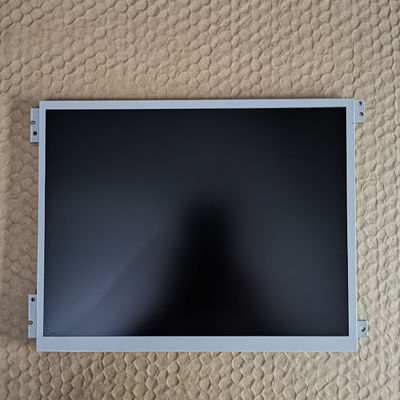

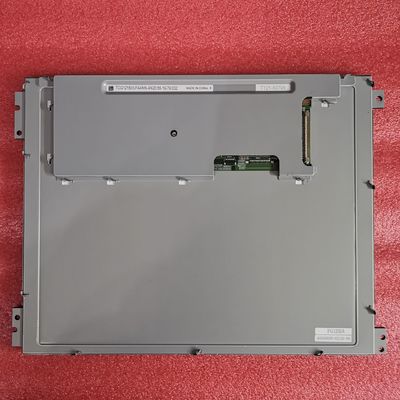

TCG121WXLRFVNN-AN70 Kyocera 12.1INCH LCM 1280×800RGB 1500NITS WLED LVDS INDUSTRIAL LCD DISPLAY

TCG121WXLRFVNN-AN70 Kyocera 12.1INCH LCM 1280×800RGB 1500NITS WLED LVDS INDUSTRIAL LCD DISPLAY
TCG121WXLRFVNN-AN70 Kyocera 12.1INCH LCM 1280×800RGB 1500NITS WLED LVDS INDUSTRIAL LCD DISPLAY TCG121WXLRFVNN-AN70 Kyocera 12.1INCH LCM 1280×800RGB 1500NITS WLED LVDS INDUSTRIAL LCD DISPLAY TCG121WXLRFVNN-AN70 Kyocera 12.1INCH LCM 1280×800RGB 1500NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Large Image :  TCG121WXLRFVNN-AN70 Kyocera 12.1INCH LCM 1280×800RGB 1500NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG121WXLRFVNN-AN70
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 50PCS
Contact Now

TCG121WXLRFVNN-AN70 Kyocera 12.1INCH LCM 1280×800RGB 1500NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Description
BRAND: Kyocera MODEL NUMBER: TCG121WXLRFVNN-AN70
SIZE: 12.1INCH RESOLUTION: 1280×800RGB
BRIGHTNESS: 1500 (Typ.)(cd/m²) Signal Type: LVDS , 20 Pins Connector
Backlight: WLED , 50K Hours , With LED Driver Max. Ratings: Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C
High Light:

WLED Industrial TFT Display

,

Hard Coating Industrial TFT Display

,

Monochrome Industrial TFT Display

Kyocera TCG121WXLRFVNN-AN70 Application Details

Basic Info :
Panel Brand

TCG121WXLRFVNN-AN70Panel Model
Diagonal Size
12.1"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
-30 ~ 80 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

-Vibration Rating



Kyocera TCG121WXLRFVNN-AN70 Mechanical Details

Pixel Features :
Pixel Format
1280(RGB)×800, WXGA
Dot Pitch
0.068×0.204 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.204×0.204 mm (H×V) [124PPI]
Mechanical Size :
Display Area
261.12×163.2 mm (H×V)
Bezel Area
264.12×166.2 mm (H×V)
Outline Dim.
283×185.1 mm (H×V)
Outline Depth
10.5±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:10 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
600g
Surface
Antiglare



Kyocera TCG121WXLRFVNN-AN70 Optical Details

Basic Information :
Brightness
1500 cd/m² (Typ.)
Contrast Ratio
750:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
AWV, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
18/12 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.305; Wy:0.325
Color Numbers
16.7M (6-bit + Hi-FRC)
Color Temperature
6974K
Uniformity
-
1931 Color Gamlt :
NTSC Ratio
51%
sRGB
71% coverage
Adobe RGB
53% coverage
DCI-P3
53% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-



Kyocera TCG121WXLRFVNN-AN70 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (180°)



Kyocera TCG121WXLRFVNN-AN70 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
50K(Typ.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
SM10B-SHLS-TF(LF)(SN)
1.0 mm
10 pins
1 pcs

Driver Electrical :
Voltage Input
12.0±1.2V
Current Input
0.95/1.24A (Typ./Max.)



Kyocera TCG121WXLRFVNN-AN70 Interface Detail

Signal Systerm :
LVDS
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
410/500mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
I-PEX
20186-020E-11F
1.25 mm
20 pins
1 pcs




FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
