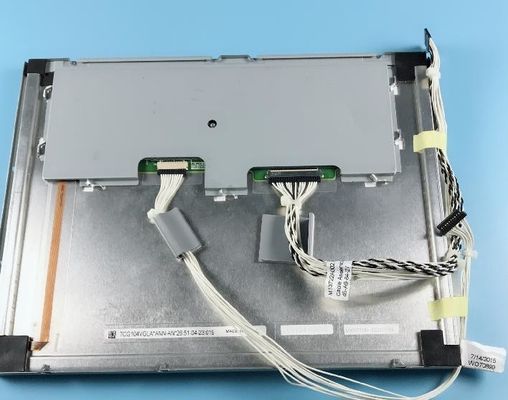

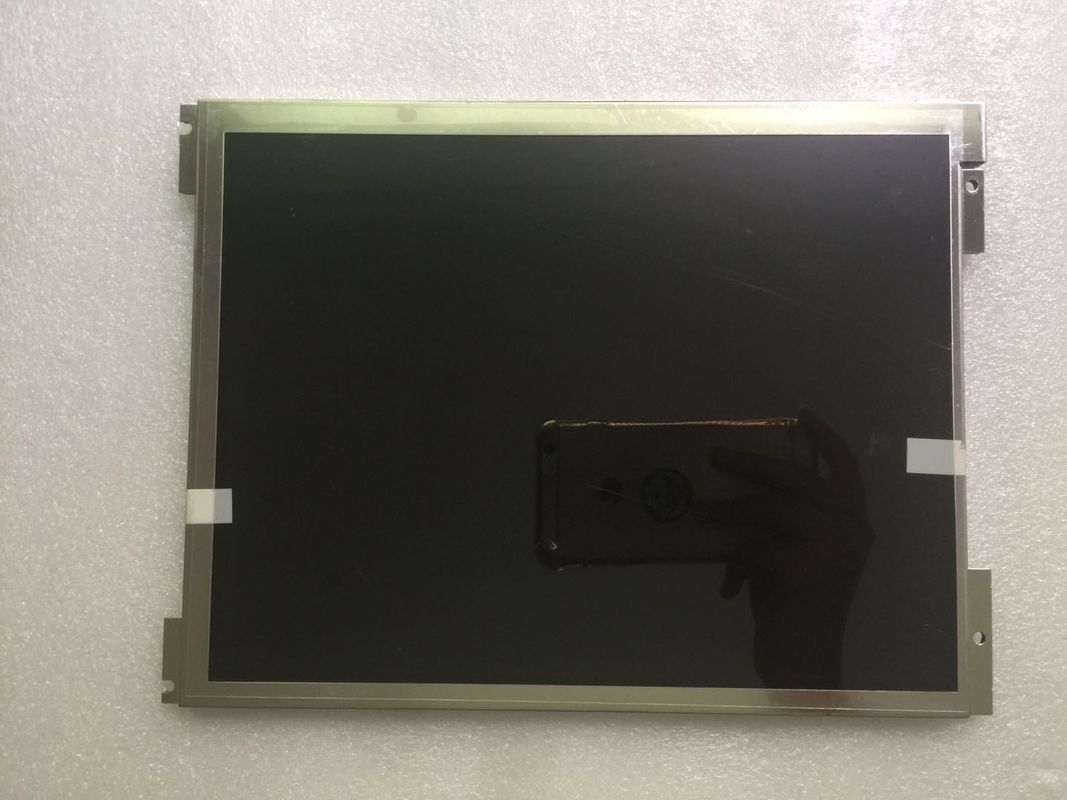

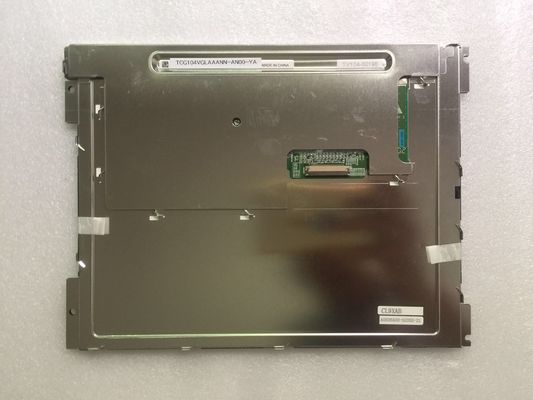

10.4" 640×480RGB WLED TTL Industrial TFT Display TCG104VGLAAANN-AN20

10.4" 640×480RGB WLED TTL Industrial TFT Display TCG104VGLAAANN-AN20
10.4" 640×480RGB WLED TTL Industrial TFT Display TCG104VGLAAANN-AN20 10.4" 640×480RGB WLED TTL Industrial TFT Display TCG104VGLAAANN-AN20 10.4" 640×480RGB WLED TTL Industrial TFT Display TCG104VGLAAANN-AN20

Large Image :  10.4" 640×480RGB WLED TTL Industrial TFT Display TCG104VGLAAANN-AN20

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG104VGLAAANN-AN20
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 100PCS
Contact Now

10.4" 640×480RGB WLED TTL Industrial TFT Display TCG104VGLAAANN-AN20

Description
MODEL NUMBER: TCG104VGLAAANN-AN20 BRAND: Kyocera
SIZE: 10.4INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 400 Cd/m² (Typ.) Signal Interface: Parallel RGB (1 Ch, 6-bit) , 40 Pins Connector
Lamp Type: WLED , 70K Hours , With LED Driver TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C
High Light:

640×480RGB Industrial TFT Display

,

WLED TTL Industrial TFT Display

,

TCG104VGLAAANN-AN20

Kyocera TCG104VGLAAANN-AN20 Application Details

Basic Detail :
Manufacturer

TCG104VGLAAANN-AN20Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
10.4 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

-Vibration Level



Kyocera TCG104VGLAAANN-AN20 Optical Details

Basic Detail :
Luminance
400 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
10/20 (Typ.)(Tr/Td) ms
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.305; Wy:0.315
Support Color
262K (6-bit)
Color Temperature
7106K
White Variation
-
1931 Color Gamlt :
NTSC Ratio
48%
sRGB
68% coverage
Adobe RGB
51% coverage
DCI-P3
50% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG104VGLAAANN-AN20 Mechanical Details

Pixel Features :
Number of Pixel
640(RGB)×480, VGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.110×0.330 mm
Pixel Pitch(W×H)
0.330×0.330 mm [76PPI]
Physical Size :
Active Viewing
211.2(W)×158.4(H) mm
Overall Dim.
240.7(W)×180.2(H) mm
Bezel Opening
215.4(W)×162.2(H) mm
Overall Depth
9.0±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Detail :
Mass
455g
Surface
Antiglare



Kyocera TCG104VGLAAANN-AN20 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)



Kyocera TCG104VGLAAANN-AN20 Interface Detail

Signal Electrical :
Input Current
150/185mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
Parallel RGB (1 ch, 6-bit)
Logic Voltage :
0≤VIL≤0.8V; 2.0V≤VIH≤VDD
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
Kyocera Elco
04-6240-040-023-846+
0.5 mm
40 pins
1 pcs



Kyocera TCG104VGLAAANN-AN20 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
70K(Typ.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
12.0±1.2V
Input Current
290/450mA (Typ./Max.)
