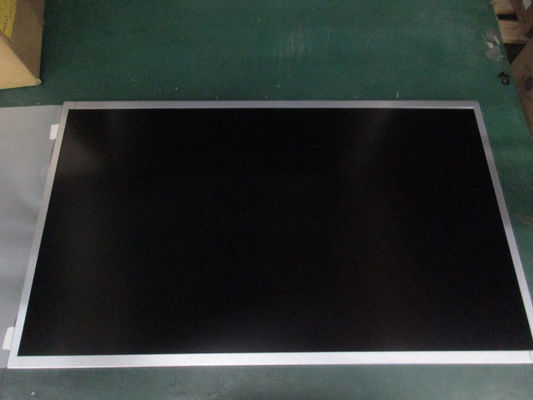

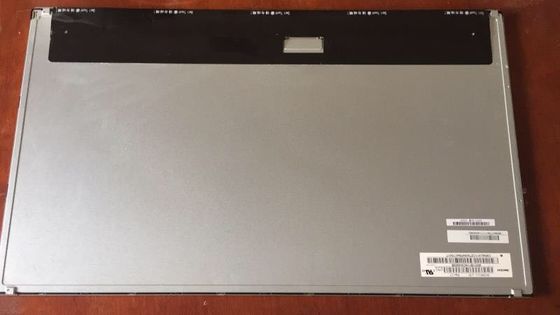

1920×1080 RGB 250nits TFT Touch Panel M215HNE-L30 Rev.C3 Innolux 21.5"

1920×1080 RGB 250nits TFT Touch Panel M215HNE-L30 Rev.C3 Innolux 21.5"
1920×1080 RGB 250nits TFT Touch Panel M215HNE-L30 Rev.C3 Innolux 21.5" 1920×1080 RGB 250nits TFT Touch Panel M215HNE-L30 Rev.C3 Innolux 21.5" 1920×1080 RGB 250nits TFT Touch Panel M215HNE-L30 Rev.C3 Innolux 21.5"

Large Image :  1920×1080 RGB 250nits TFT Touch Panel M215HNE-L30 Rev.C3 Innolux 21.5"

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: M215HNE-L30 Rev.C3
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS
Contact Now

1920×1080 RGB 250nits TFT Touch Panel M215HNE-L30 Rev.C3 Innolux 21.5"

Description
MODEL NUMBER: M215HNE-L30 Rev.C3 BRAND: INNOLUX
SIZE: 21.5 Inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10)
RESOLUTION: 1920(RGB)×1080 (FHD) 102PPI TEMPERATURE RANGE: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
High Light:

1920×1080 RGB TFT Touch Panel

,

250nits TFT Touch Panel

,

Innolux 21.5" Lcd Video Panel

Innolux M215HNE-L30 Rev.C3 Application Details

Basic Information :
Brand

M215HNE-L30 Rev.C3Model
Type
a-Si TFT-LCD , LCM
Used For

21.5 inchScreen Size
Alias
-
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS

-Vibration



Innolux M215HNE-L30 Rev.C3 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.08265×0.24795 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.24795×0.24795 (H×V) [102PPI]
Mechanical Size :
Active Area(mm)
476.064(H) × 267.786(V)
Bezel Area(mm)
479.84(H) × 271.3(V)
Outline Dim.(mm)
495.6(H) × 292.2(V)
Depth(mm)
8.7/12.0 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Normal bezel
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on up, down bezel
Other Spec :
Weight
1.80/1.85Kgs (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)



Innolux M215HNE-L30 Rev.C3 Optical Details

Basic Information :
Luminance(cd/m²)
250 (Typ.)
Contrast Ratio
3000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
Super MVA, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
15/5 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.43 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
74%
sRGB
96% coverage
Adobe RGB
74% coverage
DCI-P3
76% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux M215HNE-L30 Rev.C3 Interface Detail

Signal Electrical :
Voltage Supply
5.0V (Typ.)
Current Supply
1.13/1.40 (Typ./Max.)
Consumption
5.7/7.1W (Typ./Max.)
Signal Type :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
P-TWO
187098-30091
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160A



Innolux M215HNE-L30 Rev.C3 Backlight Details

Backlight Features :
Type
WLED
Quantity
4 strings
Position
Edge light type (Right side)
Replacement
-
Shape
4 strings
Life Time
40K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
36.7/38.4V (Typ./Max.)
Current Supply
65/69mA (Typ./Max.)
Consumption
9.5/10.0W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
CviLux
CI1406SL000-NH
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No



Innolux M215HNE-L30 Rev.C3 Packing Details

Package Box : Quantity Weight Box Size
10 pcs / box 19.9 Kgs 567×301×376 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
