1920×1080 RGB Square Tft Panel Innolux 21.5" M215HJJ-L30 Rev.C5

Certification
China Sapientia Display Co.,LIMITED certification
Customer Reviews
Dear Kay, We receive the product yesterday,your goods are superior in quality compared with other supplier. Thank you for your help. Best and Regards, Adam

—— Adam Davis

Thank you for your good service and product,hope our cooperation can be even more long-time and be happy!

—— Eric Wilson

I'm Online Chat Now

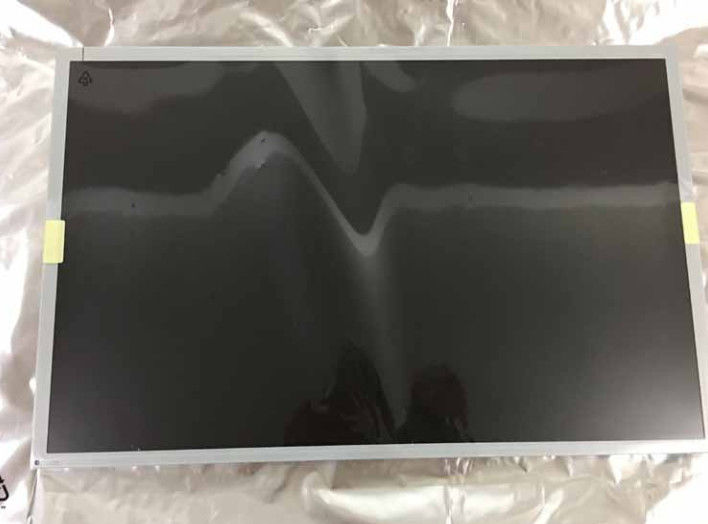

1920×1080 RGB Square Tft Panel Innolux 21.5" M215HJJ-L30 Rev.C5

1920×1080 RGB Square Tft Panel Innolux 21.5" M215HJJ-L30 Rev.C5
1920×1080 RGB Square Tft Panel Innolux 21.5" M215HJJ-L30 Rev.C5 1920×1080 RGB Square Tft Panel Innolux 21.5" M215HJJ-L30 Rev.C5 1920×1080 RGB Square Tft Panel Innolux 21.5" M215HJJ-L30 Rev.C5 1920×1080 RGB Square Tft Panel Innolux 21.5" M215HJJ-L30 Rev.C5

Large Image :  1920×1080 RGB Square Tft Panel Innolux 21.5" M215HJJ-L30 Rev.C5

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: M215HJJ-L30 Rev.C5
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS

1920×1080 RGB Square Tft Panel Innolux 21.5" M215HJJ-L30 Rev.C5

Description
MODEL NUMBER: M215HJJ-L30 Rev.C5 BRAND: INNOLUX
SIZE: 21.5 Inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 [FHD] 102PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

1920×1080 RGB Square Tft Panel

,

Square Tft Panel Innolux 21.5"

,

M215HJJ-L30 Rev.C5

Innolux M215HJJ-L30 Rev.C5 Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
  M215HJJ-L30 Rev.C5 a-Si TFT-LCD , LCM -
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
  0 ~ 50 °C -20 ~ 60 °C



Innolux M215HJJ-L30 Rev.C5 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
250 (Typ.) 89/89/89/89 (Typ.)(CR≥10) 20/5 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
Symmetry MVA, Normally Black, Transmissive 3000 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 16.7M (8-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
73% 96% 74%
DCI-P3 Coverage Rec.2020 Coverage Remarks
76% 54% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.43 (Max.)(9 points)



Innolux M215HJJ-L30 Rev.C5 Mechanical Features

Panel Size : 21.5"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1920(RGB)×1080 [FHD] RGB Vertical Stripe 0.24795×0.24795 [102PPI] 0.08265×0.24795
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
476.064(H) × 267.786(V) 479.84(H) × 271.3(V) 495.6(H) × 292.2(V) 8.3/11.5 (Typ./Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 16:9 (H:V) Normal bezel
Mounting : Side mounting holes (4-M3) on up, down bezel
Other Detail : Weight Panel Cover Treatment
1.80/1.89Kgs (Typ./Max.) - Antiglare (Haze 25%), Hard coating (3H)



Innolux M215HJJ-L30 Rev.C5 Backlight Features

Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
WLED Edge light type (Left side) 4 strings 4 strings 40K(Min.) -
WLED Electrical : Voltage Supply Current Supply Power
33.67/37.7/41.6V (Min./Typ./Max.) 65/69mA (Typ./Max.) 9.8/10.82W (Typ./Max.)
Interface Features : Position Backlight Driver Type
  No Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
FCN WM13-406-063N 1.0 mm 6 pins 1 pcs BLE-6PINS-CCAACC



Innolux M215HJJ-L30 Rev.C5 Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
5.0V (Typ.) 768/910mA (Typ./Max.) 4.8/5.6W (Typ./Max.)
Interface Features : Position Signal Type
  LVDS (2 ch, 8-bit) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
FCN WF13-422-3033 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-160A
