M215HCJ-L3N Innolux 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

M215HCJ-L3N Innolux 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
M215HCJ-L3N Innolux 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY M215HCJ-L3N Innolux 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY M215HCJ-L3N Innolux 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY M215HCJ-L3N Innolux 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

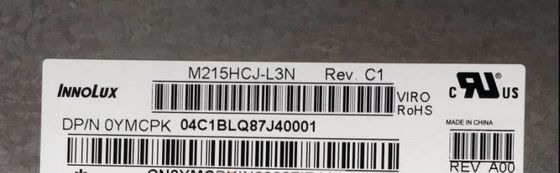

Large Image :  M215HCJ-L3N Innolux 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: M215HCJ-L3N
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1000PCS

M215HCJ-L3N Innolux 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: M215HCJ-L3N BRAND: INNOLUX
SIZE: 21.5 Inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080, FHD, 102PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
High Light:

WVGA TFT LCD Panel

,

TFT LCD Panel LVDS

,

Symmetry TFT LCD Panel

Innolux M215HCJ-L3N Application Features

Basic Information : Brand Model Type Model Alias
  M215HCJ-L3N a-Si TFT-LCD , LCM -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
  0 ~ 50 °C -20 ~ 60 °C



Innolux M215HCJ-L3N Mechanical Features

Panel Size : 21.5 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
1920(RGB)×1080, FHD RGB Vertical Stripe 0.08265×0.24795 mm 0.24795×0.24795 mm [102PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
476.064×267.786 mm 479.3×270.9 mm 489.3×287 mm 8.9/13.3 (Typ./Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 16:9 (W : H) Landscape type Normal bezel
Fixation : Rear mounting holes (7-M3)
Other Features : Panel Cover Weight Surface
- 1.85±0.19Kgs Antiglare (Haze 25%), Hard coating (3H)



Innolux M215HCJ-L3N Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
250 cd/m² (Typ.) AAS, Normally Black, Transmissive 1000:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
89/89/89/89 (Typ.)(CR≥10) Symmetry 8/7 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6485K 16.7M (8-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
73% 93% 72%
DCI-P3 Coverage Rec.2020 Coverage Remarks
75% 54% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux M215HCJ-L3N Interface Features

Signal Electrical : Current Input Voltage Input Consumption
550/640mA (Typ./Max.) 5.0V (Typ.) 3.5/4.05W (Typ.Max.)
Interface Features : Position Type Interface
  Connector LVDS (2 ch, 8-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
P-TWO 187098-30091 1 pcs 1.0 mm 30 pins LVDS-30P2C8B-160A



Innolux M215HCJ-L3N Backlight Features

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
WLED Edge light type (Bottom side) 4 strings 4 strings 30K(Min.) -
WLED Electrical : Current Input Voltage Input Consumption
50/55mA (Typ./Max.) 44.2/50.04/59.4V (Min./Typ./Max.) 10.01/11.9W (Typ./Max.)
Interface Features : Position Type WLED Driver
  Connector No
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
  BLE-6PINS-CCAACC 1 pcs   6 pins BLE-6PINS-CCAACC



Innolux M215HCJ-L3N Packing Features

Package Carton : Amount Weight Carton Size
10 pcs / box 20.1 Kgs 567×301×376 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
