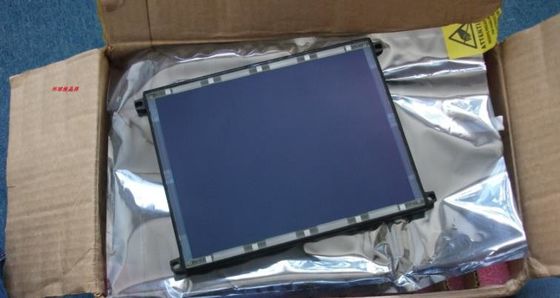

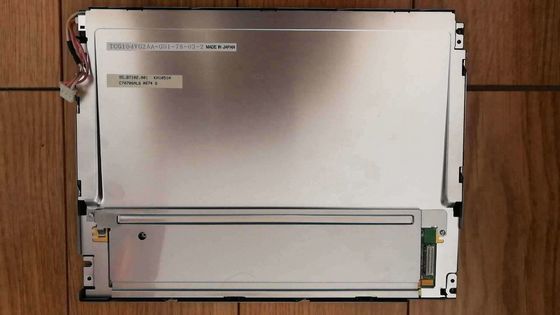

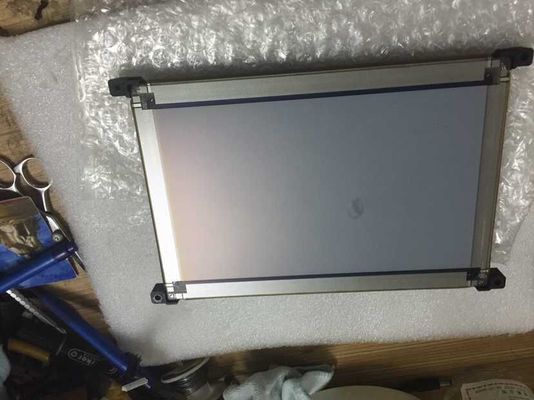

TCG104SVLPANN-AN01 Kyocera 10.4INCH LCM 800×600RGB 450NITS WLED LVDS INDUSTRIAL LCD DISPLAY

TCG104SVLPANN-AN01 Kyocera 10.4INCH LCM 800×600RGB 450NITS WLED LVDS INDUSTRIAL LCD DISPLAY
TCG104SVLPANN-AN01 Kyocera 10.4INCH LCM 800×600RGB 450NITS WLED LVDS INDUSTRIAL LCD DISPLAY TCG104SVLPANN-AN01 Kyocera 10.4INCH LCM 800×600RGB 450NITS WLED LVDS INDUSTRIAL LCD DISPLAY TCG104SVLPANN-AN01 Kyocera 10.4INCH LCM 800×600RGB 450NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Large Image :  TCG104SVLPANN-AN01 Kyocera 10.4INCH LCM 800×600RGB 450NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG104SVLPANN-AN01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 50PCS
Contact Now

TCG104SVLPANN-AN01 Kyocera 10.4INCH LCM 800×600RGB 450NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Description
BRAND: Kyocera MODEL NUMBER: TCG104SVLPANN-AN01
SIZE: 10.4INCH RESOLUTION: 800×600RGB
BRIGHTNESS: 450 Cd/m² (Typ.) Screen Type: LCM , A-Si TFT-LCD
Backlight: WLED , 70K Hours , With LED Driver TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C
Highlight:

WLED Industrial TFT Display

,

WVGA Industrial Lcd Panel

Kyocera TCG104SVLPANN-AN01 Application Details

Basic Information :
Brand

TCG104SVLPANN-AN01Model
Type
a-Si TFT-LCD , LCM
Used For

10.4 inchScreen Size
Alias
TCG104SVLP*ANN-AN*01
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS

-Vibration



Kyocera TCG104SVLPANN-AN01 Mechanical Details

Pixel Features :
Resolution
800(RGB)×600, SVGA
Dot Pitch(mm)
0.088×0.264 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.264×0.264 (H×V) [96PPI]
Mechanical Size :
Active Area(mm)
211.2(H) × 158.4(V)
Bezel Area(mm)
215.4(H) × 162.2(V)
Outline Dim.(mm)
240.7(H) × 180.2(V)
Depth(mm)
6.4/9.0 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes
Other Spec :
Weight
TBD
Treatment
Antiglare



Kyocera TCG104SVLPANN-AN01 Optical Details

Basic Information :
Luminance(cd/m²)
450 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/60 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
TBD
Color Performance :
White Coordinate
Wx:0.300; Wy:0.310
Display Colors
16.7M (8-bit)
Color Temperature
7525K
White Uniformity
TBD
1931 Color Gamlt :
NTSC Ratio
54%
sRGB
74% coverage
Adobe RGB
56% coverage
DCI-P3
56% coverage
Rec.2020
40% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG104SVLPANN-AN01 Electronics Details

Frame Rate :
60Hz
Reverse Scan :
No



Kyocera TCG104SVLPANN-AN01 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
TBD
Signal Type :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
FI-X30SSL-HF
1.0 mm
30 pins
1 pcs
LVDS-30P1C8B-272A



Kyocera TCG104SVLPANN-AN01 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
70K(Typ.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0±1.2V
Current Supply
TBD
