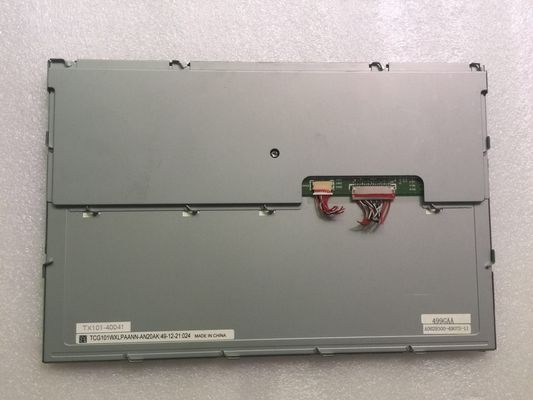

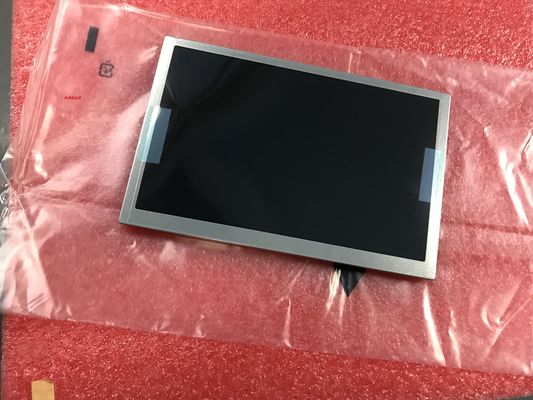

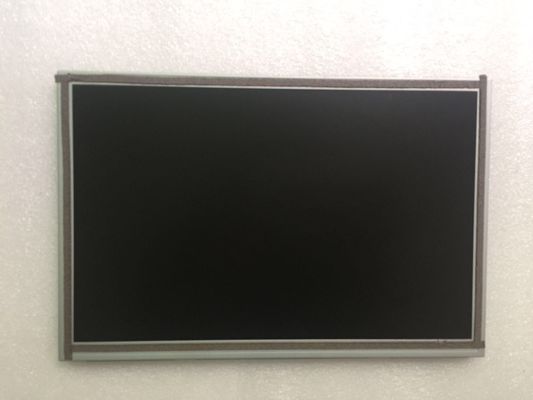

TCG101WXLPAANN-AN20-SA Kyocera 10.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLA

TCG101WXLPAANN-AN20-SA Kyocera 10.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLA
TCG101WXLPAANN-AN20-SA Kyocera 10.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLA TCG101WXLPAANN-AN20-SA Kyocera 10.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLA TCG101WXLPAANN-AN20-SA Kyocera 10.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLA

Large Image :  TCG101WXLPAANN-AN20-SA Kyocera 10.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLA

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG101WXLPAANN-AN20-SA
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 50PCS
Contact Now

TCG101WXLPAANN-AN20-SA Kyocera 10.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLA

Description
MODEL NUMBER: TCG101WXLPAANN-AN20-SA BRAND: Kyocera
SIZE: 10.1INCH RESOLUTION: 1280×800RGB
BRIGHTNESS: 500 Cd/m² (Typ.) Signal Interface: LVDS (1 Ch, 8-bit) , 20 Pins Connector
Lamp Type: WLED , 50K Hours , With LED Driver TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C
Highlight:

WLED Industrial TFT Display

,

WVGA Industrial Lcd Panel

Kyocera TCG101WXLPAANN-AN20-SA Application Details

Basic Info :
Panel Brand

TCG101WXLPAANN-AN20-SAPanel Model
Diagonal Size
10.1"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

-Vibration Rating



Kyocera TCG101WXLPAANN-AN20-SA Mechanical Details

Pixel Features :
Pixel Format
1280(RGB)×800, WXGA
Dot Pitch
0.0565×0.1695 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.1695×0.1695 mm (H×V) [149PPI]
Mechanical Size :
Display Area
216.96×135.6 mm (H×V)
Bezel Area
219.96×138.6 mm (H×V)
Outline Dim.
236×156.8 mm (H×V)
Outline Depth
6.7/9.9 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:10 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (4-M2) on left, right bezel
Other Features :
Weight
500g (Typ.)
Surface
Antiglare



Kyocera TCG101WXLPAANN-AN20-SA Optical Details

Basic Information :
Brightness
500 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
-
Response Time
8/22 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.300; Wy:0.325
Color Numbers
16.2M (6-bit + FRC)
Color Temperature
7274K
Uniformity
-
1931 Color Gamlt :
NTSC Ratio
52%
sRGB
73% coverage
Adobe RGB
54% coverage
DCI-P3
54% coverage
Rec.2020
39% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG101WXLPAANN-AN20-SA Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (180°)



Kyocera TCG101WXLPAANN-AN20-SA Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
50K(Typ.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
SM08B-SHLS-TF(LF)(SN)
1.0 mm
8 pins
1 pcs

Driver Electrical :
Voltage Input
12.0V (Typ.)
Current Input
275/360mA (Typ./Max.)





Kyocera TCG101WXLPAANN-AN20-SA Interface Detail

Signal Systerm :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
350/460mA (Typ.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
DF19L-20P-1H(54)
1.0 mm
20 pins
1 pcs




FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



TCG101WXLPAANN-AN20-SA Kyocera 10.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLA 0TCG101WXLPAANN-AN20-SA Kyocera 10.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLA 1
