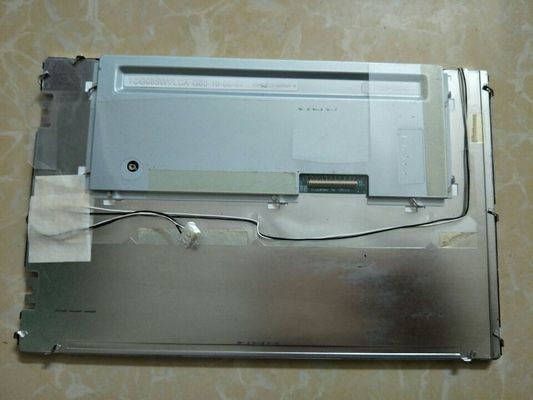

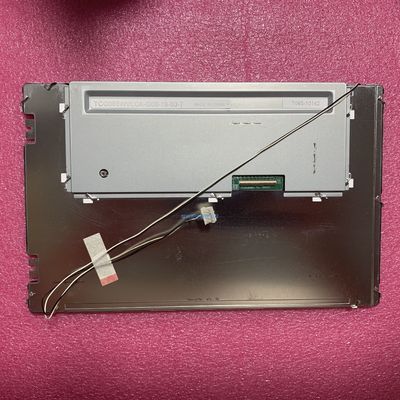

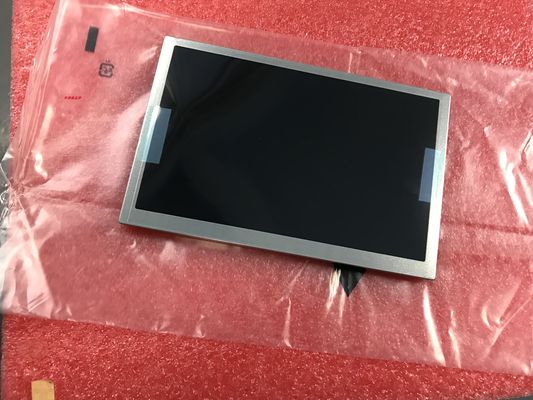

TCG085WVLCF-G00 Kyocera 8.5INCH LCM 800×480RGB 320NITS WLED TTL INDUSTRIAL LCD DISPLAY

TCG085WVLCF-G00 Kyocera 8.5INCH LCM 800×480RGB 320NITS WLED TTL INDUSTRIAL LCD DISPLAY
TCG085WVLCF-G00 Kyocera 8.5INCH LCM 800×480RGB 320NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG085WVLCF-G00 Kyocera 8.5INCH LCM 800×480RGB 320NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG085WVLCF-G00 Kyocera 8.5INCH LCM 800×480RGB 320NITS WLED TTL INDUSTRIAL LCD DISPLAY

Large Image :  TCG085WVLCF-G00 Kyocera 8.5INCH LCM 800×480RGB 320NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG085WVLCF-G00
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 100PCS
Contact Now

TCG085WVLCF-G00 Kyocera 8.5INCH LCM 800×480RGB 320NITS WLED TTL INDUSTRIAL LCD DISPLAY

Description
BRAND: Kyocera MODEL NUMBER: TCG085WVLCF-G00
SIZE: 8.5INCH RESOLUTION: 800×480RGB
BRIGHTNESS: 320 Cd/m² (Typ.) Interface Type: Parallel RGB (1 Ch, 6-bit) , 40 Pins Connector
Light Source: WLED , 50K Hours , W/O Driver TEMPERATURE RANGE: Operating Temperature: -20 ~ 70 °C
Highlight:

WLED Industrial TFT Display

,

WVGA Industrial Lcd Panel

Kyocera TCG085WVLCF-G00 Application Details

Basic Detail :
Manufacturer

TCG085WVLCF-G00Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
8.5 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

-Vibration Level



Kyocera TCG085WVLCF-G00 Optical Details

Basic Detail :
Luminance
320 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
15/35 (Typ.)(Tr/Td) ms
Viewing Angle
60/60/60/45 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.320; Wy:0.340
Support Color
262K (6-bit)
Color Temperature
6066K
White Variation
1.43 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
66% coverage
Adobe RGB
51% coverage
DCI-P3
51% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG085WVLCF-G00 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×480, WVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.077×0.231 mm
Pixel Pitch(W×H)
0.231×0.231 mm [109PPI]
Physical Size :
Active Viewing
184.8(W)×110.88(H) mm
Overall Dim.
210(W)×134(H) mm
Bezel Opening
-
Overall Depth
10.3±0.8 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
15:9
Shape Style

Touchscreen :
TP Controller
Without touch controller
TP Interface
-
Touch Points
1 point
TP Technology
4-wire Resistive Touch, G/G
Fixation :
Face mounting holes (2 pcs)
Other Detail :
Mass
TBD
Surface
Antiglare



Kyocera TCG085WVLCF-G00 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
Yes (180°)



Kyocera TCG085WVLCF-G00 Interface Detail

Signal Electrical :
Input Current
260/340mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
Parallel RGB (1 ch, 6-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
HRS
FH33-40S-0.5SH(10)
0.5 mm
40 pins
1 pcs



Kyocera TCG085WVLCF-G00 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
50K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
18.9/22.1V (Typ./Max.)
Input Current
60mA (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
PHR-4
2.0 mm
4 pins
1 pcs
BLE-4PINS-AACC
Backlight Driver :
No



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



TCG085WVLCF-G00 Kyocera 8.5INCH LCM 800×480RGB 320NITS WLED TTL INDUSTRIAL LCD DISPLAY 0TCG085WVLCF-G00 Kyocera 8.5INCH LCM 800×480RGB 320NITS WLED TTL INDUSTRIAL LCD DISPLAY 1
