Product Details:
|

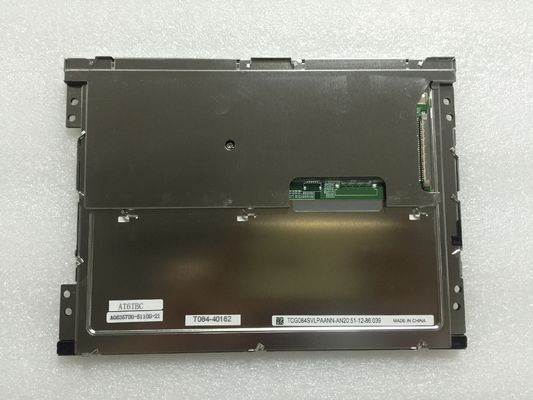

| MODEL NUMBER: | TCG084SVLPAANN-AN20 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 8.4INCH | RESOLUTION: | 800×600RGB |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | Signal Interface: | LVDS (1 Ch, 8-bit) , 30 Pins Connector |
| Lamp Type: | WLED , 70K Hours , With LED Driver | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C |
| Highlight: | WLED Industrial TFT Display,WVGA Industrial Lcd Panel |
||
| Basic Detail : | Manufacturer | Model Name | TCG084SVLPAANN-AN20 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 8.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 8/22 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.315 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 7435K | White Uniformity | 1.43 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 72% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.071×0.213 mm | Pixel Pitch(W×H) | 0.213×0.213 mm [119PPI] | |
| Physical Size : | Active Viewing | 170.4(W)×127.8(H) mm | Overall Dim. | 199.5(W)×147.4(H) mm |
| Bezel Opening | 174.4(W)×131.8(H) mm | Overall Depth | 9.5 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (8-Φ3.4) on left, right bezel | |||
| Other Detail : | Mass | 315g | Surface | Antiglare |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Signal Electrical : | Input Current | 250/310mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-X30SSLA-HF | 1 pcs | 1.0 mm | 30 pins | LVDS-30P1C8B-272A | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 70K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 250/400mA (Typ./Max.) | Input Voltage | 12.0±1.2V | ||
