TCG075VGLEAANN-GN00-SA Kyocera 7.5INCH LCM 640×480RGB 450NITS WLED TTL INDUSTRIAL LCD DISPLAY

TCG075VGLEAANN-GN00-SA Kyocera 7.5INCH LCM 640×480RGB 450NITS WLED TTL INDUSTRIAL LCD DISPLAY
TCG075VGLEAANN-GN00-SA Kyocera 7.5INCH LCM 640×480RGB 450NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG075VGLEAANN-GN00-SA Kyocera 7.5INCH LCM 640×480RGB 450NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG075VGLEAANN-GN00-SA Kyocera 7.5INCH LCM 640×480RGB 450NITS WLED TTL INDUSTRIAL LCD DISPLAY

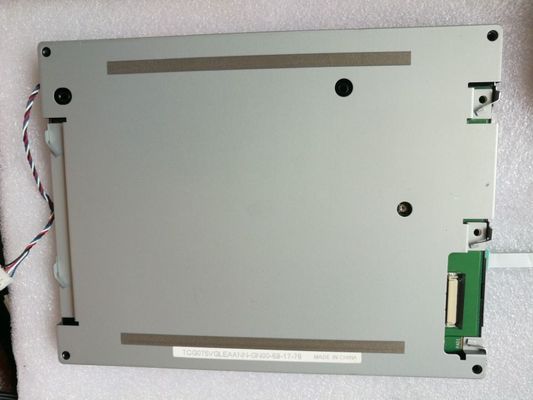

Large Image :  TCG075VGLEAANN-GN00-SA Kyocera 7.5INCH LCM 640×480RGB 450NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG075VGLEAANN-GN00-SA
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 50PCS
Contact Now

TCG075VGLEAANN-GN00-SA Kyocera 7.5INCH LCM 640×480RGB 450NITS WLED TTL INDUSTRIAL LCD DISPLAY

Description
BRAND: Kyocera MODEL NUMBER: TCG075VGLEAANN-GN00-SA
SIZE: 7.5INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 450 Cd/m² (Typ.) Screen Type: LCM , A-Si TFT-LCD
Backlight: 2 Strings WLED , 50K Hours , No Driver TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C
Highlight:

WLED Industrial TFT Display

,

WVGA Industrial Lcd Panel

Kyocera TCG075VGLEAANN-GN00-SA Application Details

Basic Info :
Panel Brand

TCG075VGLEAANN-GN00-SAPanel Model
Diagonal Size
7.5"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

-Vibration Rating



yocera TCG075VGLEAANN-GN00-SA Mechanical Details

Pixel Features :
Pixel Format
640(RGB)×480, VGA
Dot Pitch
0.079×0.237 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.237×0.237 mm (H×V) [107PPI]
Mechanical Size :
Display Area
151.68×113.76 mm (H×V)
Bezel Area
156.3×118.4 mm (H×V)
Outline Dim.
184×139.8 mm (H×V)
Outline Depth
12.7±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Rear mounting holes (4-Φ2.5)
Other Features :
Weight
340g (Typ.)
Surface
Glare (Haze 0%)



Kyocera TCG075VGLEAANN-GN00-SA Optical Details

Basic Information :
Brightness
450 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥5)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
-
Response Time
15/20 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.305; Wy:0.330
Color Numbers
262K (6-bit)
Color Temperature
6914K
Uniformity
-
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
67% coverage
Adobe RGB
51% coverage
DCI-P3
50% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG075VGLEAANN-GN00-SA Electronics Details

Reverse Scan :
Yes (U/D, L/R)



Kyocera TCG075VGLEAANN-GN00-SA Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
2 strings
Life Time
50K(Typ.) (Hours)
Replacement
-
Lamp Shape
2 strings
Position
Edge light type (Top side)
Lamp Electrical :
Voltage Input
15.0/17.6V (Typ./Max.)
Current Input
60mA (Typ.)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
PHR-4
2.0 mm
4 pins
1 pcs
BLE-4PINS-AACC



Kyocera TCG075VGLEAANN-GN00-SA Interface Detail

Signal Systerm :
Parallel RGB (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
105/140mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
IRISO
IMSA-9632S-33Z02-GF1
0.5 mm
33 pins
1 pcs
DRGB-33P1C6B-020A



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
