TCG075VGLDD-G00 Kyocera 7.5INCH LCM 640×480RGB 200NITS WLED LVDS INDUSTRIAL LCD DISPLAY

TCG075VGLDD-G00 Kyocera 7.5INCH LCM 640×480RGB 200NITS WLED LVDS INDUSTRIAL LCD DISPLAY
TCG075VGLDD-G00 Kyocera 7.5INCH LCM 640×480RGB 200NITS WLED LVDS INDUSTRIAL LCD DISPLAY TCG075VGLDD-G00 Kyocera 7.5INCH LCM 640×480RGB 200NITS WLED LVDS INDUSTRIAL LCD DISPLAY TCG075VGLDD-G00 Kyocera 7.5INCH LCM 640×480RGB 200NITS WLED LVDS INDUSTRIAL LCD DISPLAY

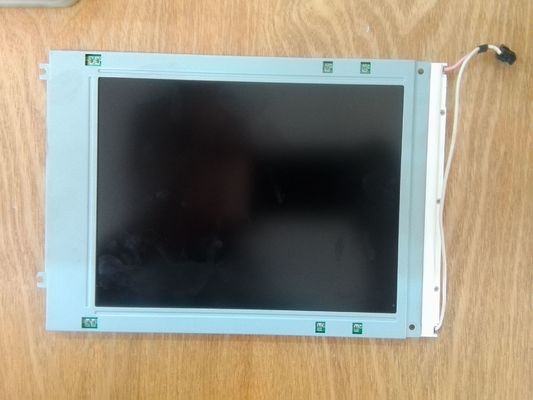

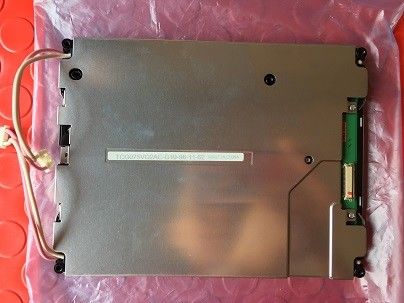

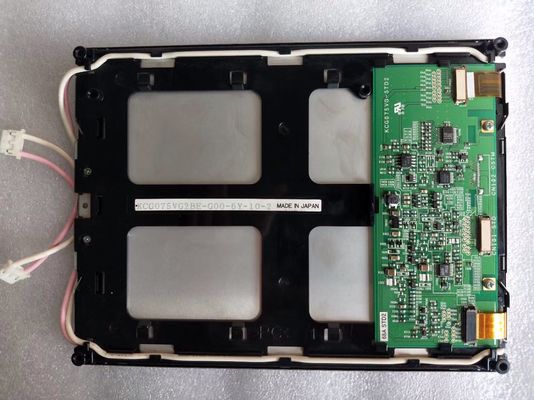

Large Image :  TCG075VGLDD-G00 Kyocera 7.5INCH LCM 640×480RGB 200NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG075VGLDD-G00
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 100PCS
Contact Now

TCG075VGLDD-G00 Kyocera 7.5INCH LCM 640×480RGB 200NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TCG075VGLDD-G00 BRAND: Kyocera
SIZE: 7.5INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 200 Cd/m² (Typ.) Signal Interface: LVDS (1 Ch, 6-bit) , 40 Pins Connector
Lamp Type: WLED , 40K Hours , Without Driver TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C
Highlight:

WLED Industrial TFT Display

,

WVGA Industrial Lcd Panel

Kyocera TCG075VGLDD-G00 Application Details

Basic Information :
Brand

TCG075VGLDD-G00Model
Type
a-Si TFT-LCD , LCM
Used For

7.5 inchScreen Size
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS

-Vibration



Kyocera TCG075VGLDD-G00 Mechanical Details

Pixel Features :
Resolution
640(RGB)×480, VGA
Dot Pitch(mm)
0.079×0.237 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.237×0.237 (H×V) [107PPI]
Mechanical Size :
Active Area(mm)
151.68(H) × 113.76(V)
Bezel Area(mm)
153.7(H) × 115.8(V)
Outline Dim.(mm)
173(H) × 133(V)
Depth(mm)
6.94/8.69 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Touch Panel :
Touch Points
-
Touch Panel
4-wire Resistive Touch
TP Controller
Without touch controller
Touch Signal
-
Other Spec :
Weight
260g
Treatment
Glare (Haze 0%)



Kyocera TCG075VGLDD-G00 Optical Details

Basic Information :
Luminance(cd/m²)
200 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥5)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
15/20 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.320; Wy:0.340
Display Colors
262K (6-bit)
Color Temperature
6066K
White Uniformity
-
1931 Color Gamlt :
NTSC Ratio
52%
sRGB
71% coverage
Adobe RGB
55% coverage
DCI-P3
54% coverage
Rec.2020
39% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG075VGLDD-G00 Electronics Details

Frame Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)



Kyocera TCG075VGLDD-G00 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
160/210mA (Typ./Max.)
Signal Type :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
IRISO
IMSA-9681S-40A-GF
0.5 mm
40 pins
1 pcs




Kyocera TCG075VGLDD-G00 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
40K(Typ.) (Hours)
Lamp Electrical :
Voltage Supply
18.8//20.0V (Typ./Max.)
Current Supply
15mA (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



TCG075VGLDD-G00 Kyocera 7.5INCH LCM 640×480RGB 200NITS WLED LVDS INDUSTRIAL LCD DISPLAY 0TCG075VGLDD-G00 Kyocera 7.5INCH LCM 640×480RGB 200NITS WLED LVDS INDUSTRIAL LCD DISPLAY 1
