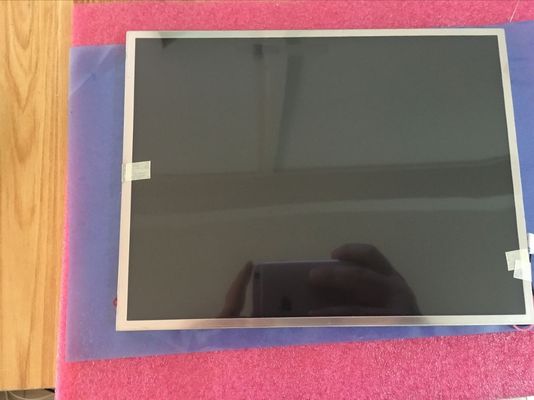

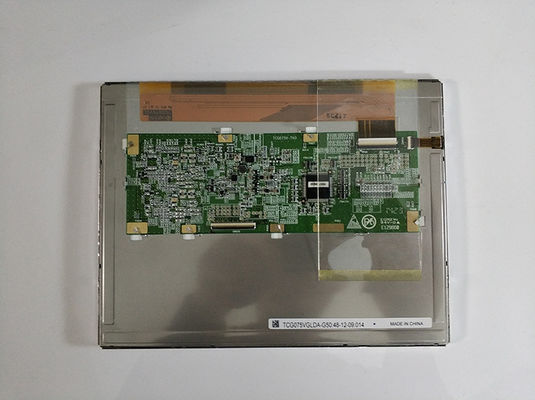

Product Details:
|
| MODEL NUMBER: | TCG075VGLDD-C00 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 7.5INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 200 Cd/m² (Typ.) | Screen Type: | LCM , A-Si TFT-LCD |
| Backlight: | 4 Strings WLED , 40K Hours , No Driver | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C |
| Highlight: | WLED Industrial TFT Display,WVGA Industrial Lcd Panel |
||
| Basic Information : | Brand | Model | TCG075VGLDD-C00 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 7.5" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.079×0.237 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.237×0.237 (H×V) [107PPI] | |
| Mechanical Size : | Active Area(mm) | 151.68(H) × 113.76(V) | Bezel Area(mm) | 156.3(H) × 118.4(V) |
| Outline Dim.(mm) | 173(H) × 133(V) | Depth(mm) | 7.89±0.8 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | - | Touch Panel | 4-wire Resistive Touch, G/G |
| Other Spec : | Weight | TBD | Treatment | Glare (Haze 0%) |
| Basic Information : | Luminance(cd/m²) | 200 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 15/20 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.320; Y:0.340 | Display Colors | 262K (6-bit) |
| Color Temperature | 6066K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 71% coverage |
| Adobe RGB | 55% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Reverse Scan : | Yes (U/D, L/R) |
|---|
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 160/210mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| IRISO | IMSA-9681S-40A-GF | 1 pcs | 40 pins | 0.5 mm | ||
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 4 strings | Life Time | 40K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 18.8/20.0V (Typ./Max.) | Current Supply | 15mA (Typ.) | ||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
