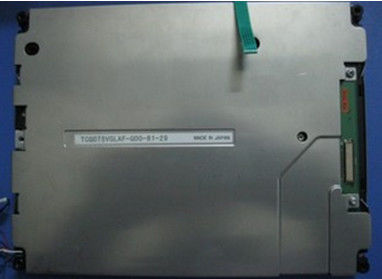

Product Details:
|
| BRAND: | Kyocera | MODEL NUMBER: | TCG075VGLAF-G00 |
|---|---|---|---|
| SIZE: | 7.5INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 220 Cd/m² (Typ.) | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector |
| Lamp Type: | 4 Strings WLED , 50K Hours , Without Driver | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C |
| Highlight: | WLED Industrial TFT Display,WVGA Industrial Lcd Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TCG075VGLAF-G00 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C | - |
| Panel Size : | 7.5 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.079×0.237 mm | 0.237×0.237 mm [107PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 151.68×113.76 mm | 153.7×115.8 mm | 184×139.8 mm | 14.5 (Tpy.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| - | - | - | 4-wire Resistive Touch | |
| Fixation : | Rear mounting holes | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 440g | Glare (Haze 0%) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 220 cd/m² (Typ.) | TN, Normally White, Transmissive | 450:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/50/70 (Typ.)(CR≥5) | - | 5/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 5598K | 262K (6-bit) | X:0.330; Y:0.350 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 65% | 49% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 48% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 290/435mA (Typ./Max.) | 3.3V (Typ.) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| Kyocera Elco | 08-6210-033-340-800+ | 1 pcs | 0.5 mm | 33 pins | DRGB-33P1C6B-020A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 4 strings | 4 strings | 50K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 25mA (Typ.) | 23.1/25.9V (Typ./Max.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | SHLP-08V-S-B | 1 pcs | 1.0 mm | 8 pins | BLE-8PINS-AAAACCCC | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
