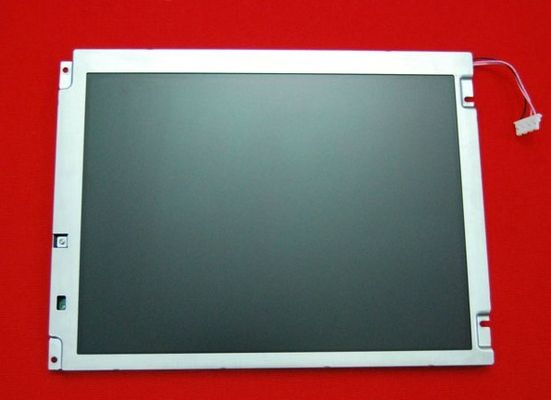

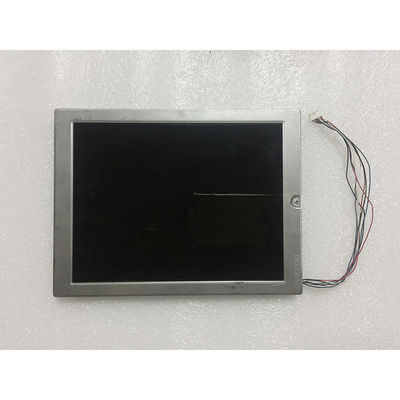

Product Details:
|
| BRAND: | Kyocera | MODEL NUMBER: | TCG075VGLAE-G00 |
|---|---|---|---|
| SIZE: | 7.5INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 280 Cd/m² (Typ.) | Backlight: | 4 Strings WLED , 50K Hours , No Driver |
| Screen Type: | LCM , A-Si TFT-LCD | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C |
| High Light: | WLED Industrial TFT Display,WVGA Industrial Lcd Panel |
||
| Basic Detail : | Manufacturer | Model Name | TCG075VGLAE-G00 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 7.5 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -10 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 280 cd/m² (Typ.) | Contrast Ratio | 450 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 5/15 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥5) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.330; Wy:0.350 | Support Color | 262K (6-bit) |
| Color Temperature | 5598K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 65% coverage |
| Adobe RGB | 49% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.079×0.237 mm | Pixel Pitch(W×H) | 0.237×0.237 mm [107PPI] | |
| Physical Size : | Active Viewing | 151.68(W)×113.76(H) mm | Overall Dim. | 184(W)×139.8(H) mm |
| Bezel Opening | 153.7(W)×115.8(H) mm | Overall Depth | 12.7 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Rear mounting holes | |||
| Other Detail : | Mass | 370g | Surface | Glare (Haze 0%) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Input Current | 290/435mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| Kyocera Elco | 08-6210-033-340-800+ | 1 pcs | 0.5 mm | 33 pins | DRGB-33P1C6B-020C | |
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 4 strings | Life | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 25mA (Typ.) | Input Voltage | 23.1/25.9V (Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SHLP-08V-S-B | 1 pcs | 1.0 mm | 8 pins | BLE-8PINS-AAAACCCC | |
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
