Product Details:
|

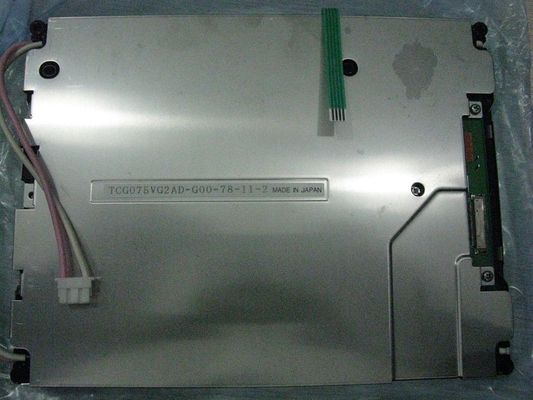

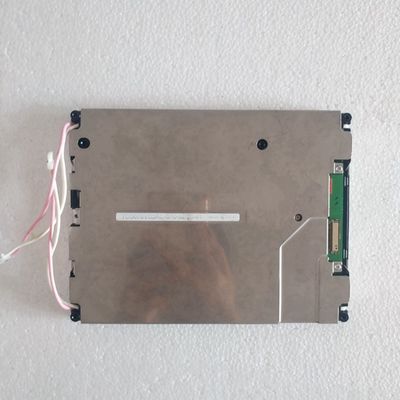

| MODEL NUMBER: | TCG075VG2AD-G00 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 7.5INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 300 Cd/m² (Typ.) | Backlight: | 2 Pcs CCFL , 58K Hours , No Driver |
| Screen Type: | LCM, A-Si TFT-LCD | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C |
| Highlight: | WLED Industrial TFT Display,WVGA Industrial Lcd Panel |
||
| Basic Information : | Brand | Model | TCG075VG2AD-G00 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 7.5" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -10 ~~ 70 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.079×0.237 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.237×0.237 (H×V) [107PPI] | |
| Mechanical Size : | Active Area(mm) | 151.68(H) × 113.76(V) | Bezel Area(mm) | 156.3(H) × 118.4(V) |
| Outline Dim.(mm) | 184(H) × 139.8(V) | Depth(mm) | 14.5/16.3 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | 1 point | Touch Panel | 4-wire Resistive Touch |
| TP Controller | Without touch controller | Touch Signal | - | |
| Mounting : | Rear mounting holes (4-Φ2.5) | |||
| Other Spec : | Weight | 440g (Typ.) | Treatment | - |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 450:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 5/15 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.320 | Display Colors | 262K (6-bit) |
| Color Temperature | 6737K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 72% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 5.06W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 290/435mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 957mW | |||||
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| Kyocera Elco | 08-6210-033-340-800+ | 1 pcs | 33 pins | 0.5 mm | DRGB-33P1C6B-020A | |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 2 pcs | Life Time | 58K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 440V (Typ.) | Current Supply | 2.0/6.0mA (Min./Max.) | ||
| Frequency | 40/100KHz (Min./Max.) | Startup Voltage | - | |||
| Consumption | 4.1W (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 2 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
