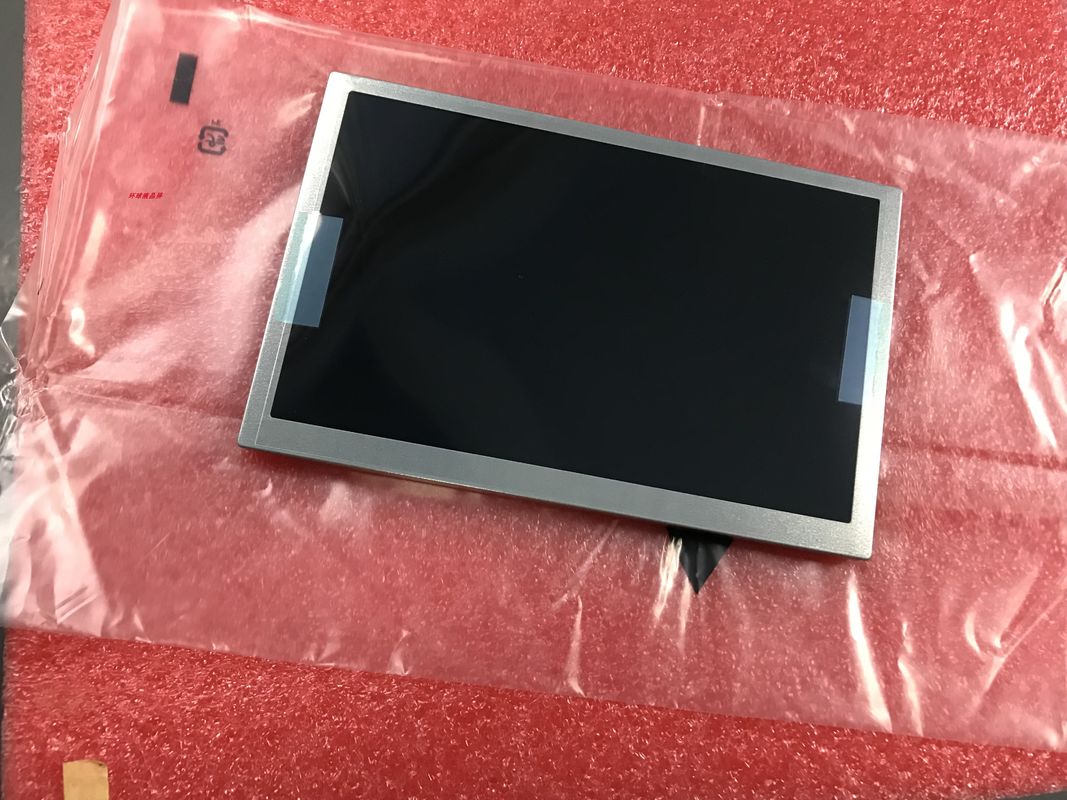

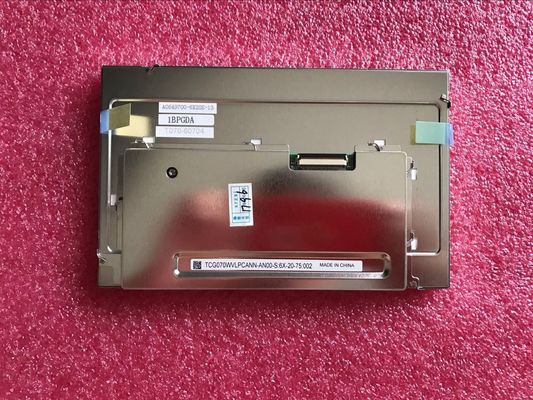

TCG070WVLQAPFA-AA00 Kyocera 7INCH LCM 800×480RGB 280NITS WLED TTL INDUSTRIAL LCD DISPLAY

TCG070WVLQAPFA-AA00 Kyocera 7INCH LCM 800×480RGB 280NITS WLED TTL INDUSTRIAL LCD DISPLAY
TCG070WVLQAPFA-AA00 Kyocera 7INCH LCM 800×480RGB 280NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG070WVLQAPFA-AA00 Kyocera 7INCH LCM 800×480RGB 280NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG070WVLQAPFA-AA00 Kyocera 7INCH LCM 800×480RGB 280NITS WLED TTL INDUSTRIAL LCD DISPLAY

Large Image :  TCG070WVLQAPFA-AA00 Kyocera 7INCH LCM 800×480RGB 280NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG070WVLQAPFA-AA00
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 50PCS
Contact Now

TCG070WVLQAPFA-AA00 Kyocera 7INCH LCM 800×480RGB 280NITS WLED TTL INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TCG070WVLQAPFA-AA00 BRAND: Kyocera
RESOLUTION: 800×480RGB SIZE: 7INCH
BRIGHTNESS: 280 Cd/m² (Typ.) Interface Type: Parallel RGB (1 Ch, 6-bit) , 40 Pins Connector
Light Source: WLED [2 Strings] , 100K Hours , W/O Driver TEMPERATURE RANGE: Operating Temperature: -20 ~ 70 °C
Highlight:

WLED Industrial TFT Display

,

WVGA Industrial Lcd Panel

Kyocera TCG070WVLQAPFA-AA00 Application Details

Basic Detail :
Manufacturer

TCG070WVLQAPFA-AA00Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
7.0 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

-Vibration Level



Kyocera TCG070WVLQAPFA-AA00 Optical Details

Basic Detail :
Luminance
280 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
12/18 (Typ.)(Tr/Td) ms
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
AWV, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.300; Wy:0.320
Support Color
262K (6-bit)
Color Temperature
7351K
White Variation
1.43 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
51%
sRGB
71% coverage
Adobe RGB
53% coverage
DCI-P3
53% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG070WVLQAPFA-AA00 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×480, WVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0635×0.1905 mm
Pixel Pitch(W×H)
0.1905×0.1905 mm [133PPI]
Physical Size :
Active Viewing
152.4(W)×91.44(H) mm
Overall Dim.
165(W)×104.4(H) mm
Bezel Opening
-
Overall Depth
10.0/10.5 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
15:9
Shape Style

Touchscreen :
TP Controller
Without touch controller
TP Interface
-
Touch Points
-
TP Technology
4-wire Resistive Touch
Fixation :
Without
Other Detail :
Mass
255g
Surface
Antiglare, Hard coating (2H)



Kyocera TCG070WVLQAPFA-AA00 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
Yes (180°)
Time Controller (T-CON) :
Embedded T-CON



Kyocera TCG070WVLQAPFA-AA00 Interface Detail

Signal Electrical :
Input Current
160/210mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
0.53W (Typ.)
Signal Interface
Parallel RGB (1 ch, 6-bit)
Logic Voltage :
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
IRISO
IMSA-9681S-40A-GF
0.5 mm
40 pins
1 pcs



Kyocera TCG070WVLQAPFA-AA00 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
2 strings
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
100K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
18.0/21.2V (Typ./Max.)
Input Current
60mA (Typ./Max.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
