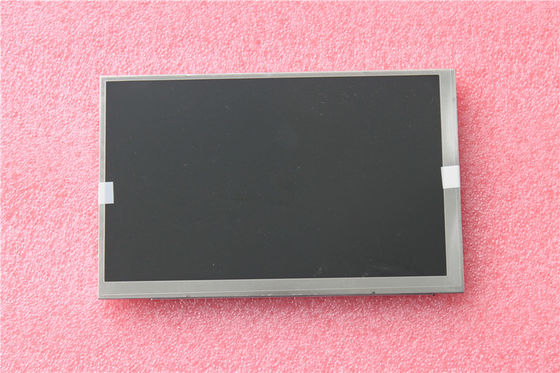

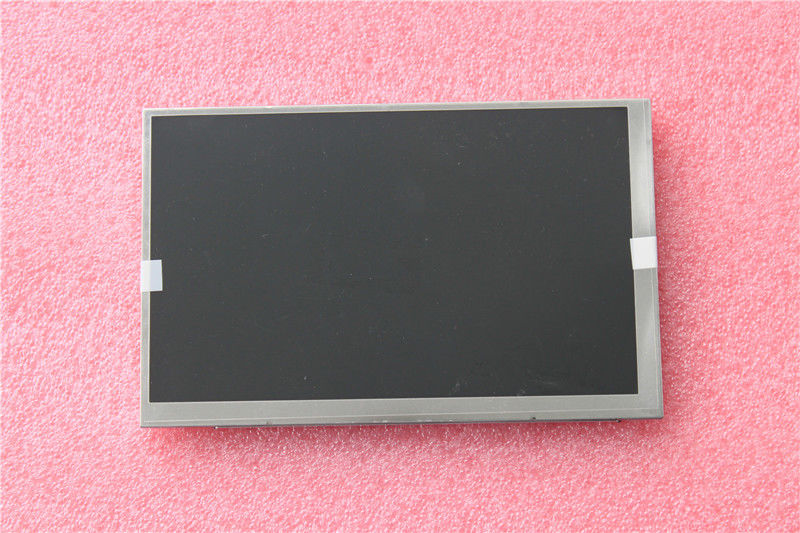

Product Details:
|
| Light Source: | WLED , 70K Hours , With LED Driver | MODEL NUMBER: | TCG070WVLPEANN-AN30 |
|---|---|---|---|
| BRAND: | 7INCH | RESOLUTION: | 800×480RGB |
| BRIGHTNESS: | 700 Cd/m² (Typ.) | Interface Type: | LVDS (1 Ch, 6/8-bit) , 30 Pins Connector |
| TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C | ||
| Highlight: | WLED Industrial TFT Display,WVGA Industrial Lcd Panel |
||

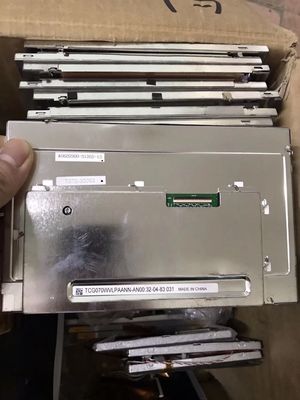

| Basic Detail : | Manufacturer | Model Name | TCG070WVLPEANN-AN30 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 7.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 700 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 5/25 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.290; Wy:0.305 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 8405K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 68% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0635×0.1905 mm | Pixel Pitch(W×H) | 0.1905×0.1905 mm [133PPI] | |
| Physical Size : | Active Viewing | 152.4(W)×91.44(H) mm | Overall Dim. | 165(W)×104.4(H) mm |
| Bezel Opening | 154.4(W)×93.4(H) mm | Overall Depth | 8.6±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 15:9 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 210g | Surface | Antiglare |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 3.48W (Typ.) |
| Signal Electrical : | Input Current | 200/260mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.66W (Typ.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | MDF76GW-30S-1H | 1 pcs | 1.0 mm | 30 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 70K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 235/400mA (Typ./Max.) | Input Voltage | 12.0±1.2V | ||
| Consumption | 2.82W (Typ.) | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
