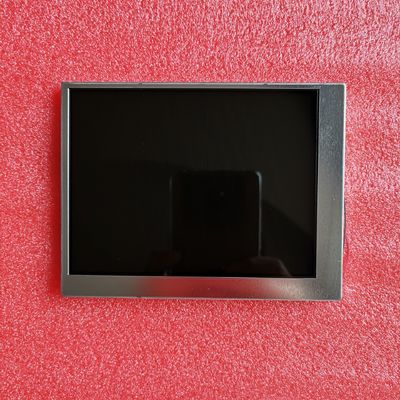

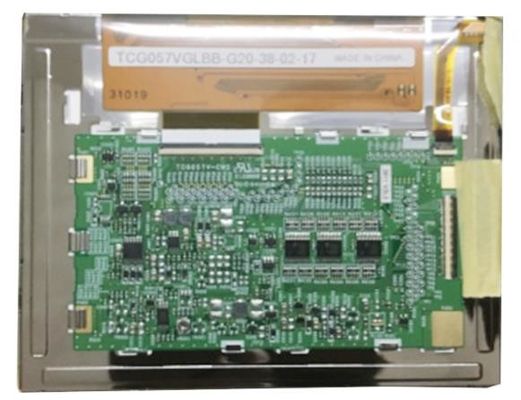

Product Details:
|
| MODEL NUMBER: | TCG057VGLBB-G20 | BRAND: | Kyocera |
|---|---|---|---|
| RESOLUTION: | 640×480RGB | SIZE: | 5.7INCH |
| BRIGHTNESS: | 200 Cd/m² (Typ.) | Signal Type: | Parallel RGB (1 Ch, 6-bit) , 40 Pins Connector |
| Backlight: | WLED , 40K Hours , With LED Driver | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C |
| High Light: | WLED Industrial TFT Display,LCD Industrial TFT Display |
||
| Basic Information : | Brand | Model | TCG057VGLBB-G20 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 5.7" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.060×0.180 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.180×0.180 (H×V) [141PPI] | |
| Mechanical Size : | Active Area(mm) | 115.2(H) × 86.4(V) | Bezel Area(mm) | 117.2(H) × 88.4(V) |
| Outline Dim.(mm) | 127.2(H) × 100.4(V) | Depth(mm) | 4.79/7.25 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | - | Touch Panel | 4-wire Resistive Touch |
| Mounting : | Without | |||
| Other Spec : | Weight | 135g (Typ.) | Treatment | Glare (Haze 0%) |
| Basic Information : | Luminance(cd/m²) | 200 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 10/25 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.330; Y:0.350 | Display Colors | 262K (6-bit) |
| Color Temperature | 5598K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 70% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Reverse Scan : | Yes (U/D, L/R) |
|---|
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 170/220mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| IRISO | IMSA-9681S-40A-GF | 1 pcs | 40 pins | 0.5 mm | ||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 40K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 3.0/5.5V (Min./Max.) | Current Supply | - | ||
