TCG057VGLBB-G00 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY

TCG057VGLBB-G00 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY
TCG057VGLBB-G00 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG057VGLBB-G00 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG057VGLBB-G00 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY

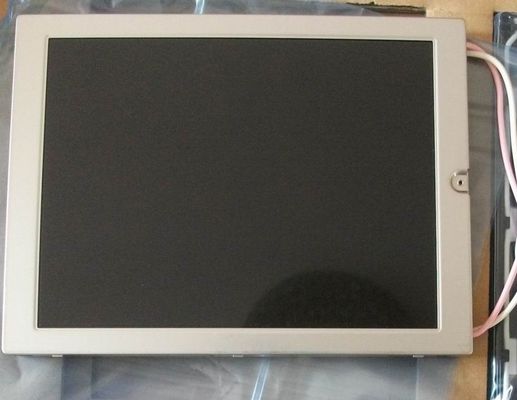

Large Image :  TCG057VGLBB-G00 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG057VGLBB-G00
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 100PCS

TCG057VGLBB-G00 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TCG057VGLBB-G00 BRAND: Kyocera
SIZE: 5.7INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 200 Cd/m² (Typ.) Signal Interface: Parallel RGB (1 Ch, 6-bit) , 40 Pins Connector
Lamp Type: 3 Strings WLED , 40K Hours , Without Driver TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C
High Light:

WLED Industrial TFT Display

,

LCD Industrial TFT Display

Kyocera TCG057VGLBB-G00 Application Details

Basic Info : Panel Brand   Panel Model TCG057VGLBB-G00
Diagonal Size 5.7" Application
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 80 °C
RoHS State   Vibration Rating -



Kyocera TCG057VGLBB-G00 Mechanical Details

Pixel Features : Pixel Format 640(RGB)×480 [VGA] Dot Pitch 0.060×0.180 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.180×0.180 mm (H×V) [141PPI]
Mechanical Size : Display Area 115.2×86.4 mm (H×V) Bezel Area 117.2×88.4 mm (H×V)
Outline Dim. 127.2×100.4 mm (H×V) Outline Depth 4.79/7.25 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style
Touch Screen : Touch Points - TP Signal -
TP Controller - Touchscreen 4-wire Resistive Touch
Holes & Brackets : Without
Other Features : Weight 135g (Typ.) Surface Glare (Haze 0%)



Kyocera TCG057VGLBB-G00 Optical Details

Basic Information : Brightness 200 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive)
Viewing Angle 80/80/80/80 (Typ.)(CR≥5) Optical Mode TN, Normally White, Transmissive
Viewing Direction - Response Time 10/25 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.330; Wy:0.350 Color Numbers 262K (6-bit)
Color Temperature 5598K White Uniformity -
1931 Color Gamlt : NTSC Ratio 52% sRGB 70% coverage
Adobe RGB 54% coverage DCI-P3 54% coverage
Rec.2020 39% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG057VGLBB-G00 Electronics Details

Reverse Scan : Yes (U/D, L/R)



Kyocera TCG057VGLBB-G00 Backlight Details

Back-light Features: Lamp Shape 3 strings Lamp Type WLED Life Time 40K(Typ.) (Hours)
Replacement - Amount 3 strings Position Edge light type
Lamp Electrical : Voltage Input 21.7/24.5V (Typ./Max.) Current Input 15mA (Typ.)
Interface Features : Type Included in panel signal interface Position - Lamp Driver No



Kyocera TCG057VGLBB-G00 Interface Details

Signal Systerm : Parallel RGB (1 ch, 6-bit) Logic Voltage -
Signal Electrical : Voltage Input 3.3V (Typ.) Current Input 170/220mA (Typ./Max.)
Interface Features : Type Connector Position -
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
IRISO IMSA-9681S-40A-GF 0.5 mm 40 pins 1 pcs




FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
