TCG057VGLBA-H50 Kyocera 5.7INCH LCM 640×480RGB 370NITS WLED TTL INDUSTRIAL LCD DISPLAY

TCG057VGLBA-H50 Kyocera 5.7INCH LCM 640×480RGB 370NITS WLED TTL INDUSTRIAL LCD DISPLAY
TCG057VGLBA-H50 Kyocera 5.7INCH LCM 640×480RGB 370NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG057VGLBA-H50 Kyocera 5.7INCH LCM 640×480RGB 370NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG057VGLBA-H50 Kyocera 5.7INCH LCM 640×480RGB 370NITS WLED TTL INDUSTRIAL LCD DISPLAY

Large Image :  TCG057VGLBA-H50 Kyocera 5.7INCH LCM 640×480RGB 370NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG057VGLBA-H50
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 100PCS
Contact Now

TCG057VGLBA-H50 Kyocera 5.7INCH LCM 640×480RGB 370NITS WLED TTL INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TCG057VGLBA-H50 BRAND: Kyocera
SIZE: 5.7INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 370 Cd/m² (Typ.) Backlight: 4 Strings WLED , 37K Hours , No Driver
Signal Type: Parallel RGB (1 Ch, 6-bit) , 40 Pins Connector TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C
Highlight:

WLED Industrial TFT Display

,

LCD Industrial TFT Display

Kyocera TCG057VGLBA-H50 Application Details

Basic Detail :
Manufacturer

TCG057VGLBA-H50Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
5.7 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

-Vibration Level



Kyocera TCG057VGLBA-H50 Optical Details

Basic Detail :
Luminance
370 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
10/25 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/80/80 (Typ.)(CR≥5)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.320; Wy:0.340
Support Color
262K (6-bit)
Color Temperature
6066K
White Variation
-
1931 Color Gamlt :
NTSC Ratio
52%
sRGB
70% coverage
Adobe RGB
54% coverage
DCI-P3
54% coverage
Rec.2020
39% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG057VGLBA-H50 Mechanical Details

Pixel Features :
Number of Pixel
640(RGB)×480, VGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.060×0.180 mm
Pixel Pitch(W×H)
0.180×0.180 mm [141PPI]
Physical Size :
Active Viewing
115.2(W)×86.4(H) mm
Overall Dim.
127.2(W)×100.4(H) mm
Bezel Opening
117.2(W)×88.4(H) mm
Overall Depth
3.74/6.0 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Without
Other Detail :
Mass
TBD
Surface
Glare (Haze 0%), Antireflection



Kyocera TCG057VGLBA-H50 Electronics Details

Reverse Scan :
Yes (U/D, L/R)

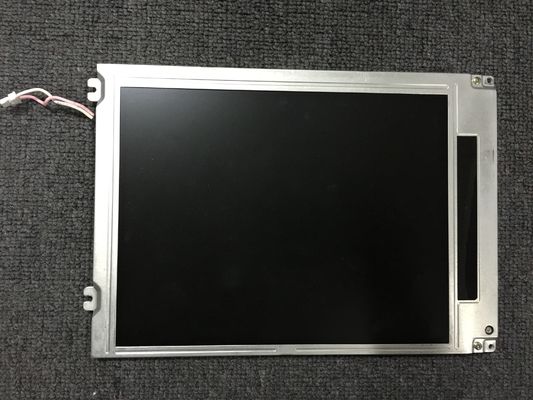

  • TCG057VGLBA-H50 Kyocera 5.7INCH LCM 640×480RGB 370NITS WLED TTL INDUSTRIAL LCD DISPLAY 0



Kyocera TCG057VGLBA-H50 Interface Detail

Signal Electrical :
Input Current
170/220mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
Parallel RGB (1 ch, 6-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
IRISO
IMSA-9681S-40A-GF
0.5 mm
40 pins
1 pcs



Kyocera TCG057VGLBA-H50 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
4 strings
Position
Edge light type
Exchange
-
Lamp Shape
4 strings
Lamp Life
37K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
21.7/24.5V (Typ./Max.)
Input Current
15mA (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

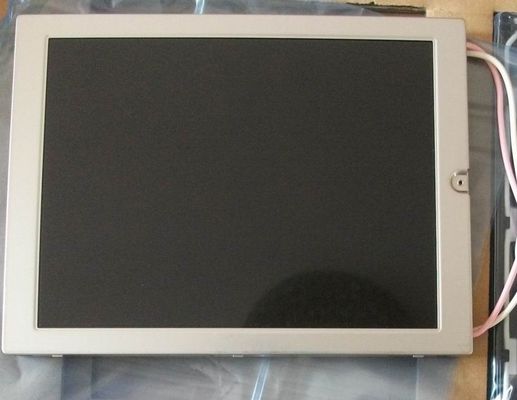

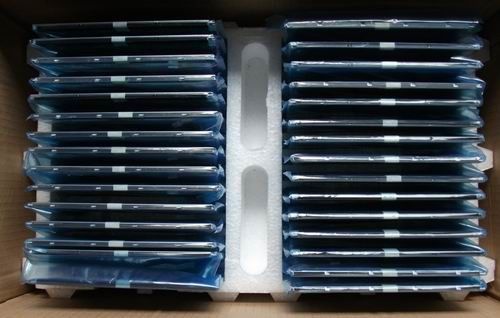

TCG057VGLBA-H50 Kyocera 5.7INCH LCM 640×480RGB 370NITS WLED TTL INDUSTRIAL LCD DISPLAY 1TCG057VGLBA-H50 Kyocera 5.7INCH LCM 640×480RGB 370NITS WLED TTL INDUSTRIAL LCD DISPLAY 2
