TCG057VGLAD-G00 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY

TCG057VGLAD-G00 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY
TCG057VGLAD-G00 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG057VGLAD-G00 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG057VGLAD-G00 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY

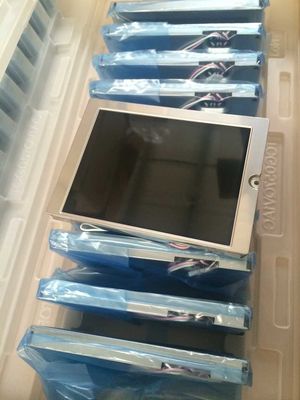

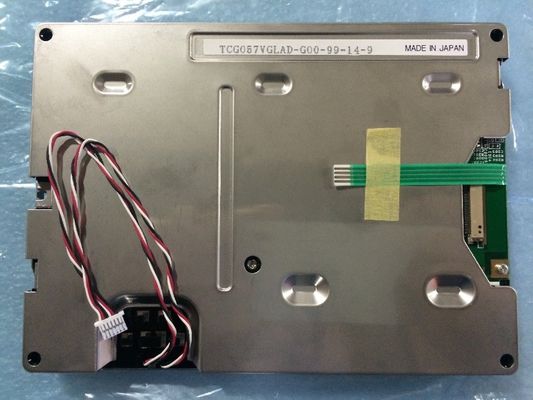

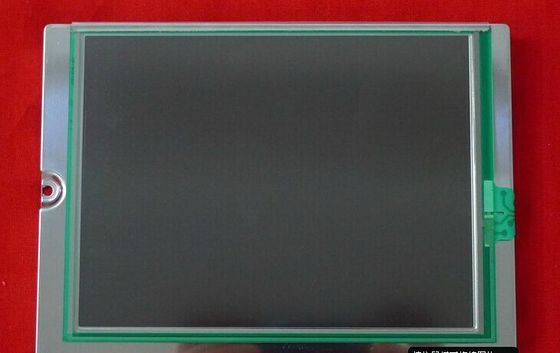

Large Image :  TCG057VGLAD-G00 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG057VGLAD-G00
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 50PCS

TCG057VGLAD-G00 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TCG057VGLAD-G00 BRAND: Kyocera
SIZE: 5.7INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 200 Cd/m² (Typ.) Interface Type: Parallel RGB (1 Ch, 6-bit) 33 Pins Connector
Light Source: WLED [3 Strings] , 30K Hours , W/O Driver TEMPERATURE RANGE: Operating Temperature: -10 ~ 70 °C
High Light:

WLED Industrial TFT Display

,

LCD Industrial TFT Display

Kyocera TCG057VGLAD-G00 Application Details

Basic Info :
Panel Brand

TCG057VGLAD-G00Panel Model
Diagonal Size
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
-10 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

-Vibration Rating



Kyocera TCG057VGLAD-G00 Mechanical Details

Pixel Features :
Pixel Format
640(RGB)×480, VGA
Dot Pitch
0.060×0.180 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.180×0.180 mm (H×V) [141PPI]
Mechanical Size :
Display Area
115.2×86.4 mm (H×V)
Bezel Area
117.2×88.4 mm (H×V)
Outline Dim.
144×104.8 mm (H×V)
Outline Depth
14.8±0.8 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Touch Screen :
Touch Points
-
TP Signal
-
TP Controller
Without touch controller
Touchscreen
4-wire Resistive Touch
Holes & Brackets :
Rear mounting holes (4-Φ2.6)
Other Features :
Weight
TBD
Surface
Glare (Haze 0%)



Kyocera TCG057VGLAD-G00 Optical Details

Basic Information :
Brightness
200 cd/m² (Typ.)
Contrast Ratio
400:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/70 (Typ.)(CR≥5)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
-
Response Time
10/25 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
-
Color Numbers
262K (6-bit)



Kyocera TCG057VGLAD-G00 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Time Controller (T-CON) :
Embedded T-CON



Kyocera TCG057VGLAD-G00 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
3 strings
Life Time
30K(Typ.) (Hours)
Replacement
-
Lamp Shape
3 strings
Position
Edge light type
Lamp Electrical :
Voltage Input
23.1/25.9V (Typ./Max.)
Current Input
25mA (Typ.)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
1.0 mm
6 pins
1 pcs
BLE-6PINS-AAACCC



Kyocera TCG057VGLAD-G00 Interface Detail

Signal Systerm :
Parallel RGB (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
210/270mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
Kyocera Elco
0.5 mm
33 pins
1 pcs
DRGB-33P1C6B-020C




FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
