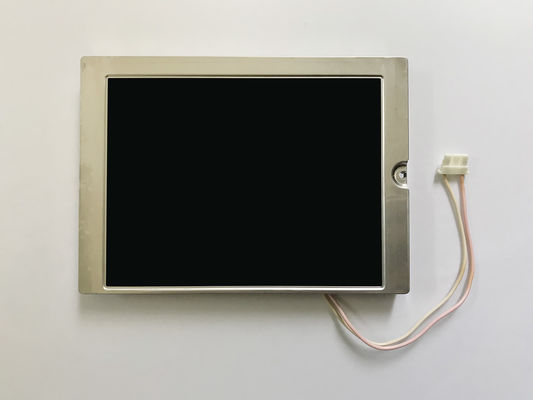

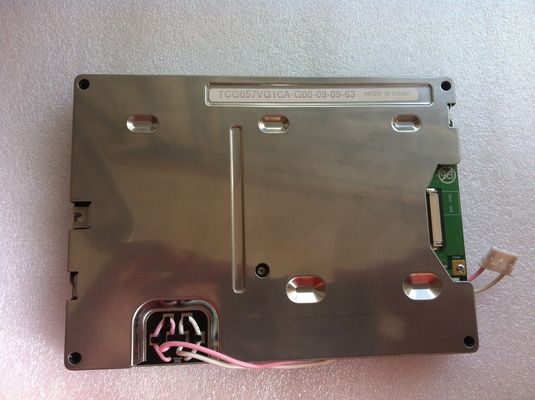

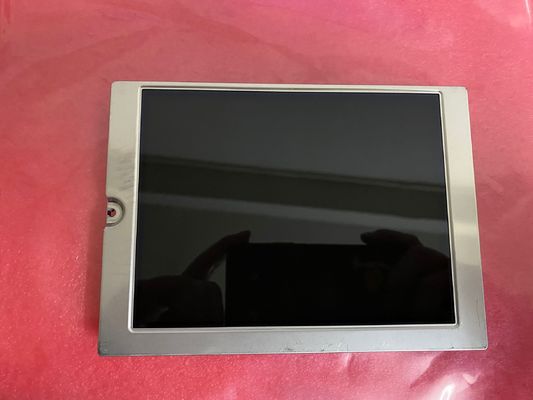

TCG057VG1CA-G00 Kyocera 5.7INCH LCM 640×480RGB 350NITS CCFL TTL INDUSTRIAL LCD DISPLAY

TCG057VG1CA-G00 Kyocera 5.7INCH LCM 640×480RGB 350NITS CCFL TTL INDUSTRIAL LCD DISPLAY
TCG057VG1CA-G00 Kyocera 5.7INCH LCM 640×480RGB 350NITS CCFL TTL INDUSTRIAL LCD DISPLAY TCG057VG1CA-G00 Kyocera 5.7INCH LCM 640×480RGB 350NITS CCFL TTL INDUSTRIAL LCD DISPLAY TCG057VG1CA-G00 Kyocera 5.7INCH LCM 640×480RGB 350NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Large Image :  TCG057VG1CA-G00 Kyocera 5.7INCH LCM 640×480RGB 350NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG057VG1CA-G00
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 50PCS
Contact Now

TCG057VG1CA-G00 Kyocera 5.7INCH LCM 640×480RGB 350NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TCG057VG1CA-G00 BRAND: Kyocera
SIZE: 5.7INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 350 Cd/m² (Typ.) Signal Interface: Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector
Lamp Type: 1 Pcs CCFL , 75K Hours , Optional TEMPERATURE RANGE: Operating Temp.: -10 ~ 70 °C
High Light:

WLED Industrial TFT Display

,

LCD Industrial TFT Display

Kyocera TCG057VG1CA-G00 Application Details

Basic Detail :
Manufacturer

TCG057VG1CA-G00Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
5.7 inch
Designed For
Maximum Ratings :
OP Temperature
-10 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

-Vibration Level



Kyocera TCG057VG1CA-G00 Optical Details

Basic Detail :
Luminance
350 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
10/25 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/80/80 (Typ.)(CR≥5)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.320; Wy:0.330
Support Color
262K (6-bit)
Color Temperature
6116K
White Variation
-
1931 Color Gamlt :
NTSC Ratio
52%
sRGB
72% coverage
Adobe RGB
54% coverage
DCI-P3
54% coverage
Rec.2020
39% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG057VG1CA-G00 Mechanical Details

Pixel Features :
Number of Pixel
640(RGB)×480, VGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.060×0.180 mm
Pixel Pitch(W×H)
0.180×0.180 mm [141PPI]
Physical Size :
Active Viewing
115.2(W)×86.4(H) mm
Overall Dim.
144(W)×104.8(H) mm
Bezel Opening
118.4(W)×89.6(H) mm
Overall Depth
13.0±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Rear mounting holes (4-Φ2.6)
Other Detail :
Mass
210g (Typ.)
Surface
Glare (Haze 0%)



Kyocera TCG057VG1CA-G00 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)



Kyocera TCG057VG1CA-G00 Interface Detail

Signal Electrical :
Input Current
150/195mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
Parallel RGB (1 ch, 6-bit)
Logic Voltage :
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
Kyocera Elco
08-6210-033-340-800+
0.5 mm
33 pins
1 pcs
DRGB-33P1C6B-020A



Kyocera TCG057VG1CA-G00 Lightting Details

Lamp Features :
Lamp Type
CCFL
Amount
1 pcs
Position
Edge light type
Exchange
-
Lamp Shape
U shape
Lamp Life
75K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
685V (Typ.)
Input Current
4.0±1mA
Frequency
30/100KHz (Min./Max.)
Turn-on Voltage
1035/1660V (Max.)(Ta=+25/-10°)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
BHR-03VS-1
4.0 mm
3 pins
1 pcs
BLL-3PINS-HNL
Backlight Driver :
Optional



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
