TCG057QVLGA-G00 Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY

TCG057QVLGA-G00 Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY
TCG057QVLGA-G00 Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG057QVLGA-G00 Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG057QVLGA-G00 Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY

Large Image :  TCG057QVLGA-G00 Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG057QVLGA-G00
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 100PCS
Contact Now

TCG057QVLGA-G00 Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TCG057QVLGA-G00 BRAND: Kyocera
SIZE: 5.7INCH RESOLUTION: 320×240RGB
BRIGHTNESS: 500 Cd/m² (Typ.) Interface Type: Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector
Light Source: WLED [2 Strings] , 70K Hours , W/O Drive TEMPERATURE RANGE: Operating Temperature: -20 ~ 70 °C
Highlight:

WLED Industrial TFT Display

,

LCD Industrial TFT Display

Kyocera TCG057QVLGA-G00 Application Details

Basic Detail :
Manufacturer

TCG057QVLGA-G00Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
5.7 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

-Vibration Level



Kyocera TCG057QVLGA-G00 Optical Details

Basic Detail :
Luminance
500 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
12 o'clock
Response Speed
35 (Typ.)(Tr+Td) ms
Viewing Angle
80/80/80/80 (Typ.)(CR≥5)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.320; Wy:0.340
Support Color
262K (6-bit)
Color Temperature
6066K
White Variation
-
1931 Color Gamlt :
NTSC Ratio
60%
sRGB
76% coverage
Adobe RGB
60% coverage
DCI-P3
62% coverage
Rec.2020
45% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG057QVLGA-G00 Mechanical Details

Pixel Features :
Number of Pixel
320(RGB)×240, QVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.120×0.360 mm
Pixel Pitch(W×H)
0.360×0.360 mm [70PPI]
Physical Size :
Active Viewing
115.2(W)×86.4(H) mm
Overall Dim.
134.5(W)×103.4(H) mm
Bezel Opening
118.4(W)×89.6(H) mm
Overall Depth
6.0/8.5 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Without
Other Detail :
Mass
TBD
Surface
Glare (Haze 0%)



Kyocera TCG057QVLGA-G00 Electronics Details

Reverse Scan :
Yes (U/D, L/R)



Kyocera TCG057QVLGA-G00 Interface Detail

Signal Electrical :
Input Current
80mA (Typ.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
Parallel RGB (1 ch, 6-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
IRISO
IMSA-9681S-33A-GF
0.5 mm
33 pins
1 pcs
DRGB-33P1C6B-020A





Kyocera TCG057QVLGA-G00 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
2 strings
Position
Edge light type (Top side)
Exchange
-
Lamp Shape
2 strings
Lamp Life
70K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
9.0/10.6V (Typ./Max.)
Input Current
60mA (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
PHR-4
2.0 mm
4 pins
1 pcs
BLE-4PINS-AACC
Backlight Driver :
No



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

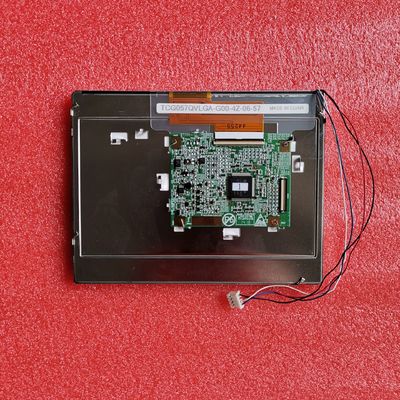

TCG057QVLGA-G00 Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY 0

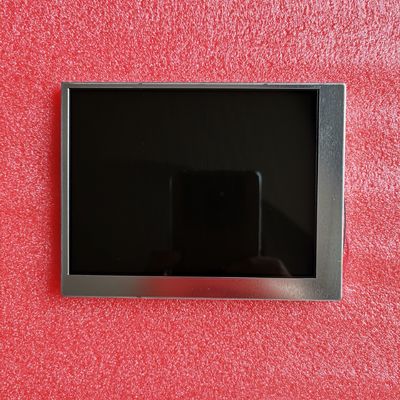

TCG057QVLGA-G00 Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY 1
