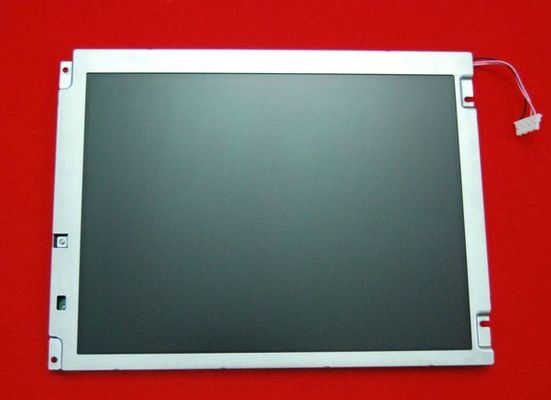

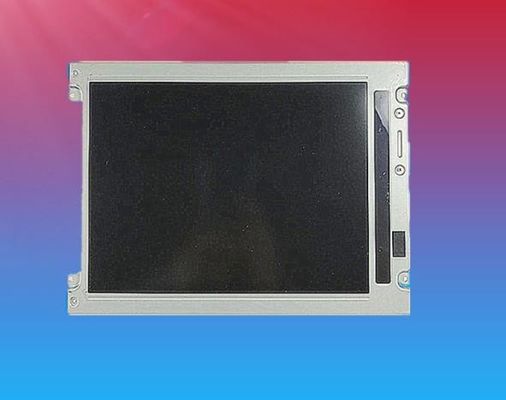

Product Details:
|
| MODEL NUMBER: | TCG057QVLBB-G00 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 240 Cd/m² (Typ.) | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 40 Pins Connector |
| Lamp Type: | 3 Strings WLED , 40K Hours , Without Driver | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C |
| High Light: | WLED Industrial TFT Display,LCD Industrial TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | TCG057QVLBB-G00 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 5.7 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 240 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 10/25 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.330; Wy:0.350 | Support Color | 262K (6-bit) |
| Color Temperature | 5598K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 59% | sRGB | 77% coverage |
| Adobe RGB | 60% coverage | DCI-P3 | 61% coverage | |
| Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 320(RGB)×240 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.120×0.360 mm | Pixel Pitch(W×H) | 0.360×0.360 mm [70PPI] | |
| Physical Size : | Active Viewing | 115.2(W)×86.4(H) mm | Overall Dim. | 127.2(W)×100.4(H) mm |
| Bezel Opening | 117.2(W)×88.4(H) mm | Overall Depth | 4.79/7.25 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Touchscreen : | TP Controller | - | TP Interface | - |
| Touch Points | - | TP Technology | 4-wire Resistive Touch | |
| Fixation : | Without | |||
| Other Detail : | Mass | 135g (Typ.) | Surface | Glare (Haze 0%) |
| Reverse Scan : | Yes (U/D, L/R) |
|---|
| Signal Electrical : | Input Current | 60/80mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| IRISO | IMSA-9681S-40A-GF | 1 pcs | 0.5 mm | 40 pins | ||
| Lamp Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 3 strings | Life | 40K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 15mA (Typ.) | Input Voltage | 21.7/24.5V (Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
