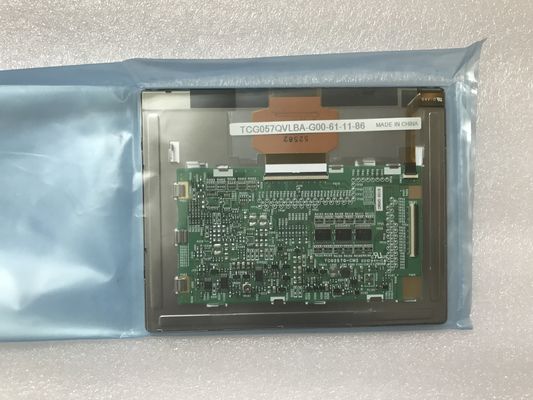

Product Details:
|
| MODEL NUMBER: | TCG057QVLBA-G00 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 300 Cd/m² (Typ.) | Backlight: | 3 Strings WLED , 40K Hours , No Driver |
| Screen Type: | LCM, A-Si TFT-LCD | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C |
| Highlight: | WLED Industrial TFT Display,LCD Industrial TFT Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TCG057QVLBA-G00 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C | - |
| Panel Size : | 5.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.120×0.360 mm | 0.360×0.360 mm [70PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 115.2×86.4 mm | 117.2×88.4 mm | 127.2×100.4 mm | 3.74/6.0 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 110g (Typ.) | Glare (Haze 0%) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥5) | - | 10/25 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6066K | 262K (6-bit) | X:0.320; Y:0.340 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 59% | 77% | 60% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 61% | 44% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Reverse Scan : | Yes (U/D, L/R) |
|---|
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 60/80mA (Typ./Max.) | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| IRISO | IMSA-9681S-40A-GF | 1 pcs | 0.5 mm | 40 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3 strings | 3 strings | 40K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 15mA (Typ.) | 21.7/24.5V (Typ./Max.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
