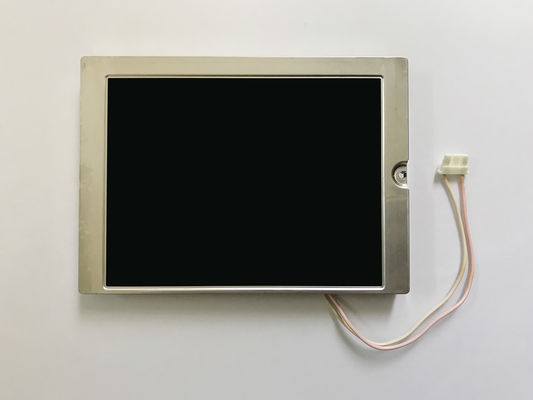

Product Details:
|
| BRAND: | Kyocera | MODEL NUMBER: | TCG057QVLAD-G00 |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 280 Cd/m² (Typ.) | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector |
| Light Source: | WLED [3 Strings] , 50K Hours , W/O Driver | TEMPERATURE RANGE: | Operating Temperature: -10 ~ 70 °C |
| High Light: | WLED Industrial TFT Display,LCD Industrial TFT Display |
||
| Basic Information : | Brand | Model | TCG057QVLAD-G00 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 5.7" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -10 ~~ 70 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch(mm) | 0.120×0.360 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.360×0.360 (H×V) [70PPI] | |
| Mechanical Size : | Active Area(mm) | 115.2(H) × 86.4(V) | Bezel Area(mm) | 119.8(H) × 91.0(V) |
| Outline Dim.(mm) | 144(H) × 104.8(V) | Depth(mm) | 14.8±0.8 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | - | Touch Panel | 4-wire Resistive Touch |
| Mounting : | Rear mounting holes (4-Φ2.6) | |||
| Other Spec : | Weight | 260g | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 280 (Typ.) | Contrast Ratio | 450:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/70/50 (Typ.)(CR≥5) | Display Mode | TN, Normally White | |
| Best View on | - | Response(ms) | 10/25 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.320; Y:0.350 | Display Colors | 262K (6-bit) |
| Color Temperature | 6022K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 64% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Reverse Scan : | Yes (U/D, L/R) |
|---|
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 130/160mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤5.5V | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| Kyocera Elco | 08-6210-033-340-800+ | 1 pcs | 33 pins | 0.5 mm | DRGB-33P1C6B-020C | |
| Backlight Features: | Shape | 3 strings | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 3 strings | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 23.1/2.9V (Typ./Max.) | Current Supply | 25mA (Typ.) | ||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | SHLP-06V-S-B | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-AAACCC | |
| Backlight Driver : | No | |||||
