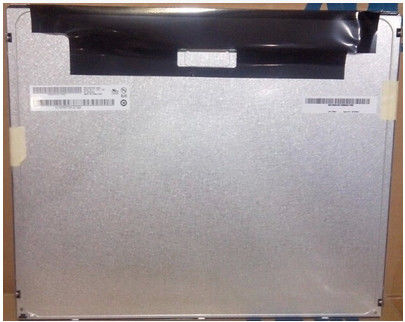

M170EGE-L20 Chimei Innolux 17.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY

M170EGE-L20 Chimei Innolux 17.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY
M170EGE-L20 Chimei Innolux 17.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY M170EGE-L20 Chimei Innolux 17.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY M170EGE-L20 Chimei Innolux 17.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY M170EGE-L20 Chimei Innolux 17.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY M170EGE-L20 Chimei Innolux 17.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  M170EGE-L20 Chimei Innolux 17.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: N/A
Brand Name: INNOLUX
Certification: ISO9001
Model Number: M170EGE-L20
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

M170EGE-L20 Chimei Innolux 17.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: M170EGE-L20 BRAND: INNOLUX
SIZE: 17.0INCH BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1280(RGB)×1024 [SXGA] 96PPI
VIEWING ANGLEG: 85/85/80/80 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

WVGA TFT LCD Panel

,

TFT LCD Panel LVDS

,

Symmetry TFT LCD Panel

Chimei Innolux M170EGE-L20 Application Details

Basic Detail :
Manufacturer

M170EGE-L20Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
17.0 inch
Designed For




  •
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C
RoHS

-Vibration Level



Chimei Innolux M170EGE-L20 Optical Details

Basic Detail :
Luminance
250 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
1/4 (Typ.)(Tr/Td) ms
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
95% coverage
Adobe RGB
74% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Chimei Innolux M170EGE-L20 Mechanical Details

Pixel Features :
Number of Pixel
1280(RGB)×1024, SXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.088×0.264 mm
Pixel Pitch(W×H)
0.264×0.264 mm [96PPI]
Physical Size :
Active Viewing
337.92(W)×270.336(H) mm
Overall Dim.
358.5(W)×296.5(H) mm
Bezel Opening
341.9(W)×274.4(H) mm
Overall Depth
10.5±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
5:4
Shape Style
Normal bezel
Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
1.40/1.50Kgs (Typ./Max.)
Surface
Antiglare (Haze 25%), Hard coating (3H)



Chimei Innolux M170EGE-L20 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
No
Total Consumption :
10.8W (Max.)



Chimei Innolux M170EGE-L20 Interface Detail

Signal Electrical :
Input Current
890/950mA (Typ./Max.)
Input Voltage
5.0V (Typ.)
Consumption
4.45/4.75W (Typ./Max.)
Signal Interface
LVDS (2 ch, 8-bit)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
FOXCONN
GS23302-0311R-7H
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160A



Chimei Innolux M170EGE-L20 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
12S4P
Position
Edge light type (Bottom side)
Exchange
-
Lamp Shape
4 strings
Lamp Life
50K(Min.) (Hours)
Lamp Electrical :
Input Voltage
37.2/40.8V (Typ./Max.)
Input Current
65/69mA (Typ./Max.)
Consumption
9.72/10.61W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
FCN
WM13-406-063N
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No



Chimei Innolux M170EGE-L20 Packing Details

Package Box : Amount Size (L×W×H) Weight
7 pcs / box 12 Kgs 448×322×390 mm



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
