TCG057QV1AC-G00 Kyocera 5.7INCH LCM 320×240RGB 470NITS CCFL TTL INDUSTRIAL LCD DISPLAY

TCG057QV1AC-G00 Kyocera 5.7INCH LCM 320×240RGB 470NITS CCFL TTL INDUSTRIAL LCD DISPLAY

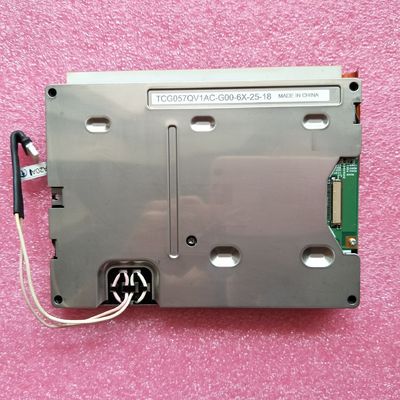

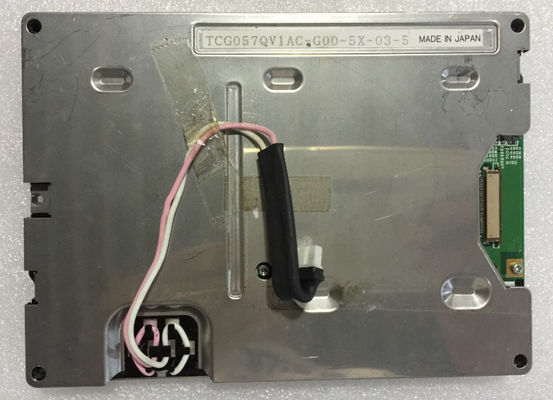

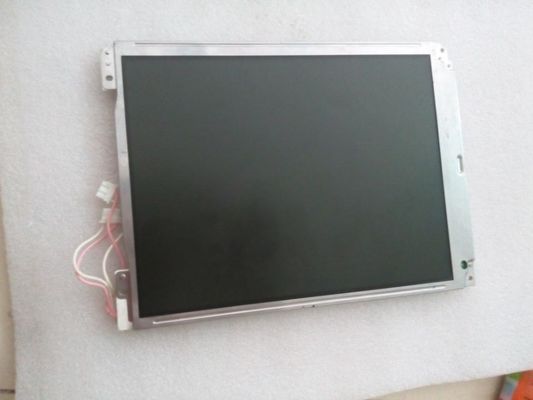

TCG057QV1AC-G00 Kyocera 5.7INCH LCM 320×240RGB 470NITS CCFL TTL INDUSTRIAL LCD DISPLAY TCG057QV1AC-G00 Kyocera 5.7INCH LCM 320×240RGB 470NITS CCFL TTL INDUSTRIAL LCD DISPLAY TCG057QV1AC-G00 Kyocera 5.7INCH LCM 320×240RGB 470NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Large Image :  TCG057QV1AC-G00 Kyocera 5.7INCH LCM 320×240RGB 470NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG057QV1AC-G00
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 800PCS
Contact Now

TCG057QV1AC-G00 Kyocera 5.7INCH LCM 320×240RGB 470NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TCG057QV1AC-G00 BRAND: Kyocera
SIZE: 5.7INCH RESOLUTION: 320×240RGB
BRIGHTNESS: 470 Cd/m² (Typ.) Signal Interface: CMOS (1 Ch, 6-bit) , 33 Pins Connector
Lamp Type: 1 Pcs CCFL , Optional TEMPERATURE RANGE: Operating Temp.: -10 ~ 70 °C
High Light:

WLED Industrial TFT Display

,

LCD Industrial TFT Display

Kyocera TCG057QV1AC-G00 Application Details

Basic Info :
Panel Brand

TCG057QV1AC-G00Panel Model
Diagonal Size
5.7"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
-10 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

-Vibration Rating



Kyocera TCG057QV1AC-G00 Mechanical Details

Pixel Features :
Pixel Format
320(RGB)×240, QVGA
Dot Pitch
0.120×0.360 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.360×0.360 mm (H×V) [70PPI]
Mechanical Size :
Display Area
115.2×86.4 mm (H×V)
Bezel Area
117.2×88.4 mm (H×V)
Outline Dim.
144×104.8 mm (H×V)
Outline Depth
13.0±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Rear mounting holes (4-Φ2.6)
Other Features :
Weight
220g (Typ.)
Surface
Glare (Haze 0%)



Kyocera TCG057QV1AC-G00 Optical Details

Basic Information :
Brightness
470 cd/m² (Typ.)
Contrast Ratio
450:1 (Typ.) (Transmissive)
Viewing Angle
70/70/70/50 (Typ.)(CR≥5)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
-
Response Time
10/25 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.311; Wy:0.318
Color Numbers
262K (6-bit)
Color Temperature
6699K
Uniformity
-
1931 Color Gamlt :
NTSC Ratio
51%
sRGB
70% coverage
Adobe RGB
53% coverage
DCI-P3
53% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG057QV1AC-G00 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Time Controller (T-CON) :
Embedded T-CON



Kyocera TCG057QV1AC-G00 Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
1 pcs
Life Time
-
Replacement
-
Lamp Shape
U shape
Position
Edge light type
Lamp Electrical :
Voltage Input
685V (Typ.)
Current Input
4.0±1mA
Frequency
30/100KHz (Min./Max.)
Kick-off Voltage
1035/1550V (Max.)(Ta=+25/0°)
Interface Features :
Type
Connector
Position
-
Lamp Driver
Optional
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
BHR-03VS-1
4.0 mm
3 pins
1 pcs
BLL-3PINS-HNL



Kyocera TCG057QV1AC-G00 Interface Detail

Signal Systerm :
CMOS (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤5.5V
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
130/160mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
Kyocera Elco
08-6210-033-340-800A+
0.5 mm
33 pins
1 pcs
DRGB-33P1C6B-020C




FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.





TCG057QV1AC-G00 Kyocera 5.7INCH LCM 320×240RGB 470NITS CCFL TTL INDUSTRIAL LCD DISPLAY 0TCG057QV1AC-G00 Kyocera 5.7INCH LCM 320×240RGB 470NITS CCFL TTL INDUSTRIAL LCD DISPLAY 1
