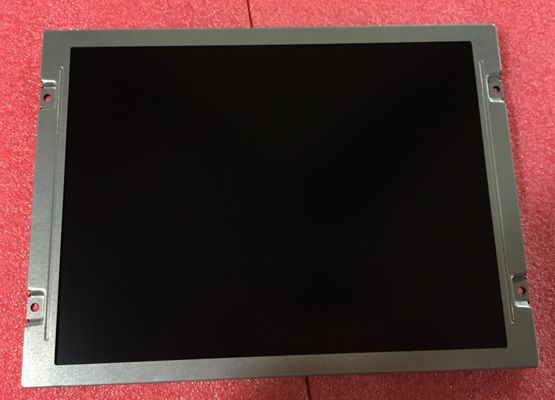

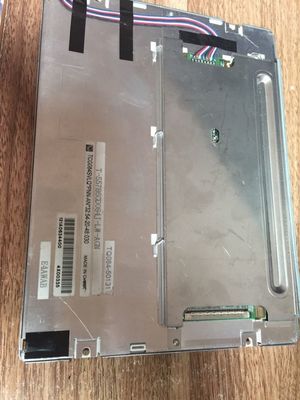

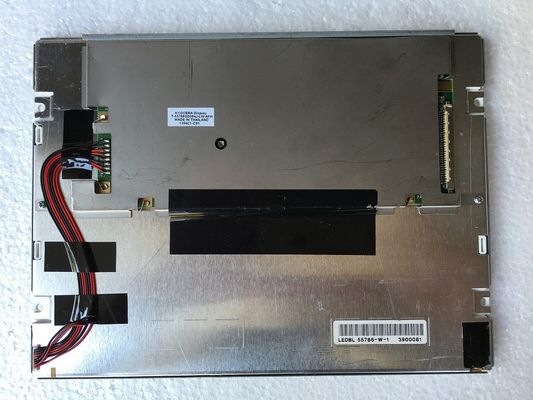

Product Details:
|
| MODEL NUMBER: | T-55786GD084J-LW-AGN | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 8.4INCH | RESOLUTION: | 800×600RGB |
| BRIGHTNESS: | 600 Cd/m² (Typ.) | Signal Interface: | LVDS (1 Ch, 8-bit) , 30 Pins Connector |
| Lamp Type: | 8S2P WLED , 70K Hours , With LED Driver | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 80 °C |
| High Light: | WLED Industrial TFT Display,LCD Industrial TFT Display |
||
| Basic Information : | Brand | Model | T-55786GD084J-LW-AGN | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 8.4" | Alias | TCG084SVLQEPNN-AN30 | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -30 ~~ 80 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.071×0.213 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.213×0.213 (H×V) [119PPI] | |
| Mechanical Size : | Active Area(mm) | 170.4(H) × 127.8(V) | Bezel Area(mm) | 173.9(H) × 131.9(V) |
| Outline Dim.(mm) | 199.5(H) × 149(V) | Depth(mm) | 11.5±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (4-Φ3.4); Side mounting holes (4-M2) on left, right bezel | |||
| Other Spec : | Weight | 350g (Typ.) | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 600 (Typ.) | Contrast Ratio | 750:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | AWV, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 18/12 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.320; Y:0.345 | Display Colors | 16.2M (6-bit + FRC) |
| Color Temperature | 6043K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 71% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 270/350mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-X30SSLA-HF | 1 pcs | 30 pins | 1.0 mm | LVDS-30P1C8B-272A | |
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 8S2P | Life Time | 70K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 520/780mA (Typ./Max.) | ||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 20 pcs / box | - | 495×410×331 mm (L×W×H) |
