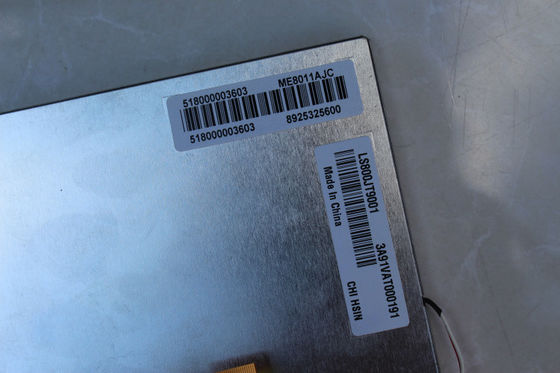

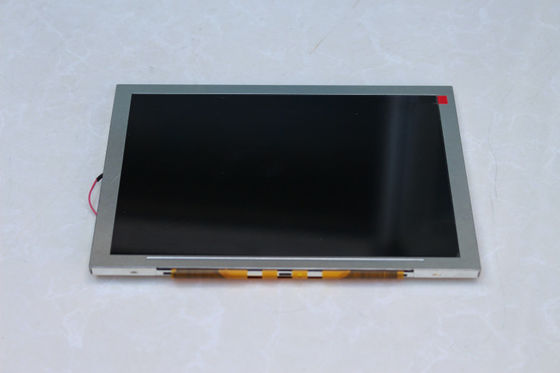

LS800JT9001 CHIHSIN 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY

LS800JT9001 CHIHSIN 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY
LS800JT9001 CHIHSIN 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY LS800JT9001 CHIHSIN 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY LS800JT9001 CHIHSIN 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY LS800JT9001 CHIHSIN 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LS800JT9001 CHIHSIN 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: CHIHSIN
Certification: ISO9001
Model Number: LS800JT9001
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS

LS800JT9001 CHIHSIN 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LS800JT9001 BRAND: CHIHSIN
SIZE: 8.0INCH BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 800(RGB)×600, SVGA, 125PPI
VIEWING ANGLEG: 70/70/60/70 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
High Light:

WVGA TFT LCD Panel

,

TFT LCD Panel LVDS

,

Symmetry TFT LCD Panel

ChiHsin LS800JT9001 Application Features

Basic Information : Brand Name Model Name Type Model Alias
  LS800JT9001 a-Si TFT-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  -20 ~ 70 °C -30 ~ 80 °C



ChiHsin LS800JT9001 Mechanical Features

Screen Size : 8.0"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
800(RGB)×600, SVGA RGB Vertical Stripe 0.0675×0.2025 mm 0.2025×0.2025 mm [125PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
162×121.5 mm 164.6×124.1 mm 183×141 mm 5.8 (Typ.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
245g (Typ.) - Antiglare (Haze 25%)



ChiHsin LS800JT9001 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
250 cd/m² (Typ.) TN, Normally White, Transmissive 500:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 70/70/60/70 (Typ.)(CR≥10) 15/35 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6638K 262K (6-bit) X:0.310; Y:0.330
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
64% 86% 67%
DCI-P3 Coverage Rec.2020 Coverage Remarks
66% 48% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



ChiHsin LS800JT9001 Electronics Features

Refresh Rate : 60Hz
Reverse Scan : No
Time Controller (T-CON) : Embedded T-CON



ChiHsin LS800JT9001 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Edge light type 10K(Min.) 3S9P Array -
WLED Electrical : Input Voltage Input Current Power Consumption
9.9/10.5V (Typ./Max.) 180/225mA (Typ./Max.) 1.78/2.36W (Typ./Max.)
Interface Features : WLED Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST BHSR-02VS-1 1 pcs 2 pins 3.5 mm BLE-2PINS-AC



ChiHsin LS800JT9001 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3/8.4/16/-7V (Typ.)(VCC/AVDD/VGH/VGL) 23/32/0.2/0.2mA (Typ.)(ICC/IAVDD/IGH/IGL) -
Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC

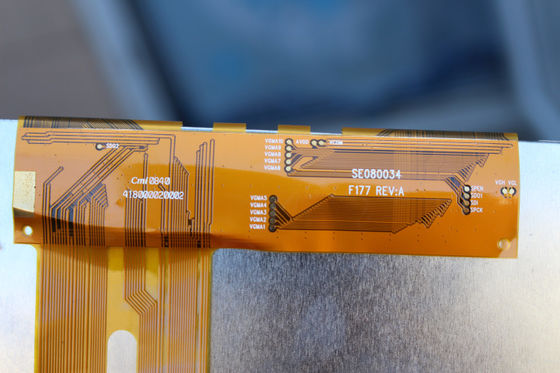

Interface Features : Signal Type Physical Type Interface Position
Parallel RGB (1 ch, 6-bit) FPC -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
    2 pcs 30 pins 0.5 mm
