T-55265GD057J-LW-ADN Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY

T-55265GD057J-LW-ADN Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY
T-55265GD057J-LW-ADN Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY T-55265GD057J-LW-ADN Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY T-55265GD057J-LW-ADN Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY

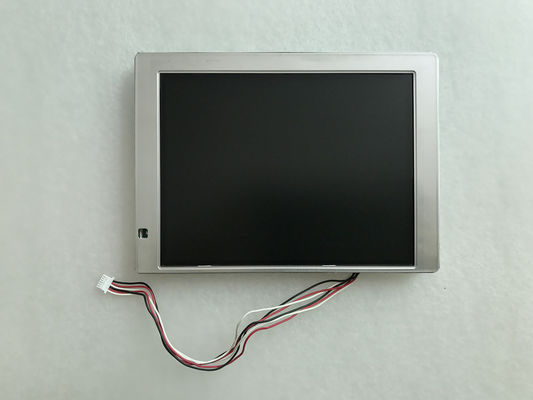

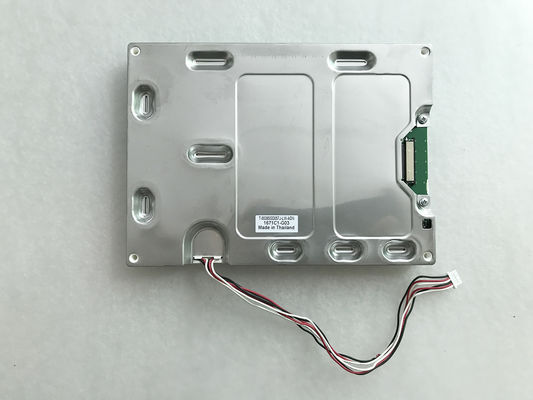

Large Image :  T-55265GD057J-LW-ADN Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: T-55265GD057J-LW-ADN
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 50PCS

T-55265GD057J-LW-ADN Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED TTL INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: T-55265GD057J-LW-ADN BRAND: Kyocera
SIZE: 5.7INCH RESOLUTION: 320×240RGB
BRIGHTNESS: 500 Cd/m² (Typ.) Backlight: 4S3P WLED , No Driver
Screen Type: LCM , A-Si TFT-LCD TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C
High Light:

WLED Industrial TFT Display

,

LCD Industrial TFT Display

OPTREX T-55265GD057J-LW-ADN Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
  T-55265GD057J-LW-ADN a-Si TFT-LCD , LCM -
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
  -20 ~ 70 °C -30 ~ 80 °C -
Used For :
Specific Features :






OPTREX T-55265GD057J-LW-ADN Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
500 (Typ.) 70/70/70/70 (Typ.)(CR≥5) 21/10 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
6 o'clock TN, Normally White, Transmissive 350 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
5983K 262K (6-bit) X:0.320; Y:0.360
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
60% 80% 63%
DCI-P3 Coverage Rec.2020 Coverage Remarks
62% 45% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.33/1.43 (Typ./Max.)(9 points)



OPTREX T-55265GD057J-LW-ADN Mechanical Features

Panel Size : 5.7"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
320(RGB)×240 [QVGA] RGB Vertical Stripe 0.360×0.360 [70PPI] 0.120×0.360
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
115.2(H) × 86.4(V) 117.88(H) × 88.24(V) 144(H) × 104.6(V) 13.5 (Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 4:3 (H:V)
Mounting : Rear mounting holes (4-Ф2.6)
Other Detail : Weight Panel Cover Treatment
255g (Max.) - -



OPTREX T-55265GD057J-LW-ADN Electronics Features

Reverse Scan : Yes (U/D, L/R)



OPTREX T-55265GD057J-LW-ADN Backlight Features

Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
WLED Edge light type 4S3P 3 strings - -
WLED Electrical : Voltage Supply Current Supply Power
12.4V (Typ.) 60/150mA (Typ./Max.) 2.16/6.48 (Typ./Max.)
Interface Features : Position Backlight Driver Type
- No Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
JST SHLP-06V-S-B 1.0 mm 6 pins 1 pcs BLE-6PINS-AAACCC



OPTREX T-55265GD057J-LW-ADN Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
3.3V (Typ.)(VCC) 100/150mA (Typ./Max.)(ICC) -
Voltage for Display Signals : 0≤VIL≤0.3VCCV; 0.7VCC≤VIH≤VCC
Interface Features : Position Signal Type
- Parallel RGB (1 ch, 6-bit) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
Kyocera Elco 08-6260-033-340-829+ 0.5 mm 33 pins 1 pcs DRGB-33P1C6B-020A



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
