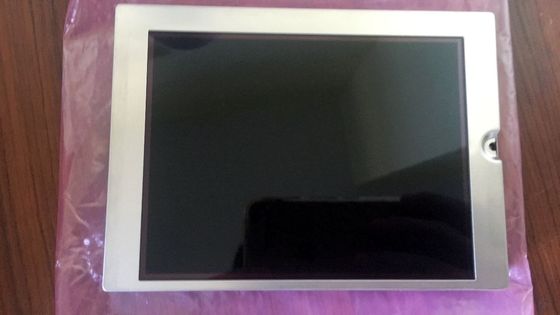

T-55265GD057J-LW-ACN Kyocera 5.7INCH LCM 320×240RGB 400NITS WLED TTL INDUSTRIAL LCD DISPLAY

T-55265GD057J-LW-ACN Kyocera 5.7INCH LCM 320×240RGB 400NITS WLED TTL INDUSTRIAL LCD DISPLAY
T-55265GD057J-LW-ACN Kyocera 5.7INCH LCM 320×240RGB 400NITS WLED TTL INDUSTRIAL LCD DISPLAY T-55265GD057J-LW-ACN Kyocera 5.7INCH LCM 320×240RGB 400NITS WLED TTL INDUSTRIAL LCD DISPLAY T-55265GD057J-LW-ACN Kyocera 5.7INCH LCM 320×240RGB 400NITS WLED TTL INDUSTRIAL LCD DISPLAY

Large Image :  T-55265GD057J-LW-ACN Kyocera 5.7INCH LCM 320×240RGB 400NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: T-55265GD057J-LW-ACN
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 50PCS

T-55265GD057J-LW-ACN Kyocera 5.7INCH LCM 320×240RGB 400NITS WLED TTL INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: T-55265GD057J-LW-ACN BRAND: Kyocera
SIZE: 5.7INCH RESOLUTION: 320×240RGB
BRIGHTNESS: 400 Cd/m² (Typ.) Signal Interface: Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector
Lamp Type: 4S3P WLED , Without Driver TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C
High Light:

WLED Industrial TFT Display

,

LCD Industrial TFT Display

OPTREX T-55265GD057J-LW-ACN Application Features

Basic Information : Brand Name Model Name Type Model Alias
  T-55265GD057J-LW-ACN a-Si TFT-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  -20 ~ 70 °C -30 ~ 80 °C -
Application :
Typical Features :







OPTREX T-55265GD057J-LW-ACN Mechanical Features

Screen Size : 5.7"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
320(RGB)×240, QVGA RGB Vertical Stripe 0.120×0.360 mm 0.360×0.360 mm [70PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
115.2×86.4 mm 119.8×91.0 mm 144×104.6 mm 15.1 (Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Touch Panel : Touch Points Signal Type Controller Technology
- - - 4-wire Resistive Touch
Other Spec : Mass Panel Cover Surface Treatment
306.0g (Max.) - -
Holes & Brackets : Rear mounting holes (4-Ф2.6)



OPTREX T-55265GD057J-LW-ACN Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
400 cd/m² (Typ.) TN, Normally White, Transmissive 350:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 70/70/70/70 (Typ.)(CR≥5) 21/10 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
8278K 262K (6-bit) X:0.2919; Y:0.3040
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
56% 76% 58%
DCI-P3 Coverage Rec.2020 Coverage Remarks
58% 42% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.33/1.43 (Typ./Max.)(9 points)



PTREX T-55265GD057J-LW-ACN Electronics Features

Reverse Scan : Yes (U/D, L/R)



OPTREX T-55265GD057J-LW-ACN Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Edge light type - 4S3P 3 strings -
WLED Electrical : Input Voltage Input Current Power Consumption
13.2V (Typ.) 60mA (Typ.)
Interface Features : WLED Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST SHLP-06V-S-B 1 pcs 6 pins 1.0 mm BLE-6PINS-AAACCC



OPTREX T-55265GD057J-LW-ACN Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.)(VCC) 100/150mA (Typ./Max.)(ICC) -
Voltage for Display Signals : 0≤VIL≤0.3VCCV; 0.7VCC≤VIH≤VCC
Interface Features : Signal Type Physical Type Interface Position
Parallel RGB (1 ch, 6-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
Kyocera Elco 08-6260-033-340-829+ 1 pcs 33 pins 0.5 mm DRGB-33P1C6B-020A



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.





T-55265GD057J-LW-ACN Kyocera 5.7INCH LCM 320×240RGB 400NITS WLED TTL INDUSTRIAL LCD DISPLAY 0T-55265GD057J-LW-ACN Kyocera 5.7INCH LCM 320×240RGB 400NITS WLED TTL INDUSTRIAL LCD DISPLAY 1
