Product Details:
|

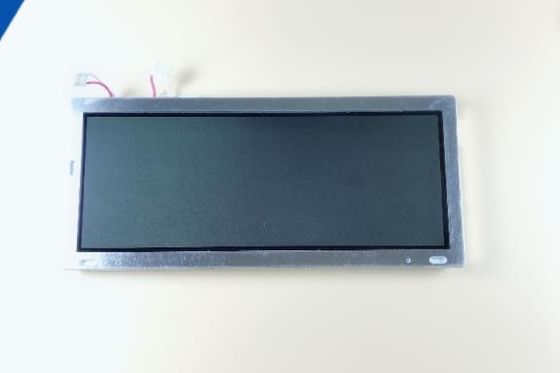

| MODEL NUMBER: | T-51965GD088ZU-MFW-A-AJN | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 8.8INCH | RESOLUTION: | 640×240RGB |
| Light Source: | CCFL [2 Pcs] , W/O Driver | Interface Type: | CMOS (1 Ch, 6-bit) , 31 Pins Connector |
| Type: | A-Si TFT-LCD, LCM | TEMPERATURE RANGE: | Operating Temperature: -40 ~ 85 °C |
| Highlight: | WLED Industrial TFT Display,LCD Industrial TFT Display |
||
| Basic Information : | Manufacturer | Panel Model 1 Compatible | Panel Type | Alias |
|---|---|---|---|---|
| T-51965GD088ZU-MFW-A-AJN | a-Si TFT-LCD , LCM | AA088HA04 | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| - | -40 ~ 85 °C | - | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| - | - | - | |
| Best View on | Display Mode | Contrast Ratio | |
| 12 o'clock | TN, Normally White, Transflective | 185 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 262K (6-bit) | - | |
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | - |
| Panel Size : | 8.8" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640(RGB)×240 [HVGA] | RGB Vertical Stripe | 0.327×0.327 [77PPI] | 0.109×0.327 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 209.28(H) × 78.48(V) | - | - | - | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 8:3 (H:V) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 2 pcs | Straight | - | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Features : | Position | Signal | Type | |||
|---|---|---|---|---|---|---|
| - | CMOS (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 31 pins | 1 pcs | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
