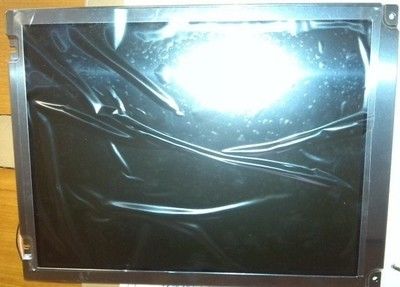

Product Details:
|
| MODEL NUMBER: | T-51863D150J-FW-A-AE | BRAND: | Kyocera |
|---|---|---|---|
| RESOLUTION: | 1024×768RGB | SIZE: | 15INCH |
| BRIGHTNESS: | 450 Cd/m² (Typ.) | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
| Lamp Type: | 4 Pcs CCFL , 50K Hours , Without Driver | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C |
| High Light: | WLED Industrial TFT Display,LCD Industrial TFT Display |
||
| Basic Info : | Panel Brand | Panel Model | T-51863D150J-FW-A-AE 1 Compatible | |
|---|---|---|---|---|
| Diagonal Size | 15.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | AA150XN02A | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -20 ~ 80 °C |
| RoHS State | Vibration Rating | 1.0G (9.8 m/s²) |
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.099×0.297 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.297×0.297 mm (H×V) [85PPI] | |
| Mechanical Size : | Display Area | 304.128×228.096 mm (H×V) | Bezel Area | 308.1×232.1 mm (H×V) |
| Outline Dim. | 326×255 mm (H×V) | Outline Depth | 15.9 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.31Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 450:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 75/75/50/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 6/19 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 72% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Amount | 4 pcs | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 620V (Typ.) | Current Input | 3.5/6.5/8.0mA (Min./Typ./Max.) | ||
| Frequency | 40/70KHz (Min./Max.) | Kick-off Voltage | 1300/1500/1650V (Min.)(Ta=+25/0/-20℃) | |||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 2 pcs | BLL-2PINS-HH | |
| JST | BHR-02VS-1 | 4.0 mm | 2 pins | 2 pcs | BLL-2PINS-LL | |
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 410/700mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF14H-20P-1.25H(56) | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-010H | |
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 10 pcs / box | 17.4 Kgs | 488×395×361 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
