T-51750GD065J-LW-BHN Kyocera 6.5INCH LCM 640×480RGB 800NITS WLED TTL INDUSTRIAL LCD DISPLAY

T-51750GD065J-LW-BHN Kyocera 6.5INCH LCM 640×480RGB 800NITS WLED TTL INDUSTRIAL LCD DISPLAY
T-51750GD065J-LW-BHN Kyocera 6.5INCH LCM 640×480RGB 800NITS WLED TTL INDUSTRIAL LCD DISPLAY T-51750GD065J-LW-BHN Kyocera 6.5INCH LCM 640×480RGB 800NITS WLED TTL INDUSTRIAL LCD DISPLAY T-51750GD065J-LW-BHN Kyocera 6.5INCH LCM 640×480RGB 800NITS WLED TTL INDUSTRIAL LCD DISPLAY T-51750GD065J-LW-BHN Kyocera 6.5INCH LCM 640×480RGB 800NITS WLED TTL INDUSTRIAL LCD DISPLAY

Large Image :  T-51750GD065J-LW-BHN Kyocera 6.5INCH LCM 640×480RGB 800NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: T-51750GD065J-LW-BHN
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS

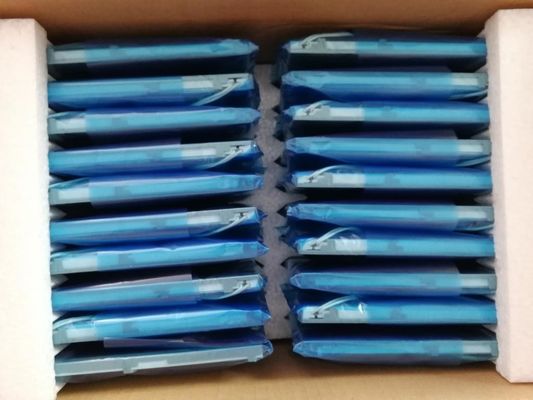

Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 300PCS
Contact Now

T-51750GD065J-LW-BHN Kyocera 6.5INCH LCM 640×480RGB 800NITS WLED TTL INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: T-51750GD065J-LW-BHN BRAND: Kyocera
SIZE: 6.5INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 800 Cd/m² (Typ.) Signal Interface: Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector
Lamp Type: 8S2P×2CN WLED , Without Driver TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C
Highlight:

WLED Industrial TFT Display

,

LCD Industrial TFT Display

OPTREX T-51750GD065J-LW-BHN Application Details

Basic Detail :
Manufacturer

T-51750GD065J-LW-BHNModel Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
6.5 inch
Designed For




  •
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-20 ~ 70 °C
RoHS

-Vibration Level



OPTREX T-51750GD065J-LW-BHN Optical Details

Basic Detail :
Luminance
800 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
15/16 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/50/70 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.320; Wy:0.350
Support Color
262K (6-bit)
Color Temperature
6022K
White Variation
1.43 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
52%
sRGB
72% coverage
Adobe RGB
55% coverage
DCI-P3
54% coverage
Rec.2020
39% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-



OPTREX T-51750GD065J-LW-BHN Mechanical Details

Pixel Features :
Number of Pixel
640(RGB)×480, VGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.069×0.207 mm
Pixel Pitch(W×H)
0.207×0.207 mm [122PPI]
Physical Size :
Active Viewing
132.48(W)×99.36(H) mm
Overall Dim.
158(W)×120.36(H) mm
Bezel Opening
135.46(W)×101.9(H) mm
Overall Depth
8.4/11.25 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Touchscreen :
TP Controller
Without touch controller
TP Interface
-
Touch Points
-
TP Technology
4-wire Resistive Touch
Fixation :
Face mounting holes (4-R1.75) on left, right bezel
Other Detail :
Mass
280g (Typ.)
Surface
Antiglare (Haze 9%)



OPTREX T-51750GD065J-LW-BHN Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
Yes (180°)



OPTREX T-51750GD065J-LW-BHN Interface Detail

Signal Electrical :
Input Current
240/180mA (Typ.)(ICC)
Input Voltage
3.3/5.0V (Typ.)(VCC)
Consumption
-
Signal Interface
Parallel RGB (1 ch, 6-bit)
Logic Voltage :
NA≤VIL≤0.8V; 2.4V≤VIH≤5.5V
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
HRS
DF9B-31P-1V
1.0 mm
31 pins
1 pcs
DRGB-31P1C6B-010F



OPTREX T-51750GD065J-LW-BHN Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
8S2P×2CN
Position
Edge light type (Top and Bottom)
Exchange
-
Lamp Shape
2 strings × 2CN
Lamp Life
-
Lamp Electrical :
Input Voltage
26.4/32V (Typ./Max.)
Input Current
35mA (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
SHLP-06V-S-B
1.0 mm
6 pins
2 pcs
BLE-6PINS-AANNCC
Backlight Driver :
No



OPTREX T-51750GD065J-LW-BHN Specification Source

Datasheet Referenced : File Number Version Language Issue Date
- Rev.02 English 2017 - 12 - 27
Panelook Latest Update : 2019-08-23 14:09



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



T-51750GD065J-LW-BHN Kyocera 6.5INCH LCM 640×480RGB 800NITS WLED TTL INDUSTRIAL LCD DISPLAY 0T-51750GD065J-LW-BHN Kyocera 6.5INCH LCM 640×480RGB 800NITS WLED TTL INDUSTRIAL LCD DISPLAY 1
