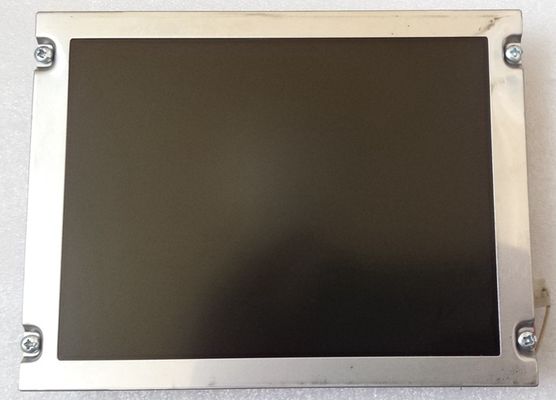

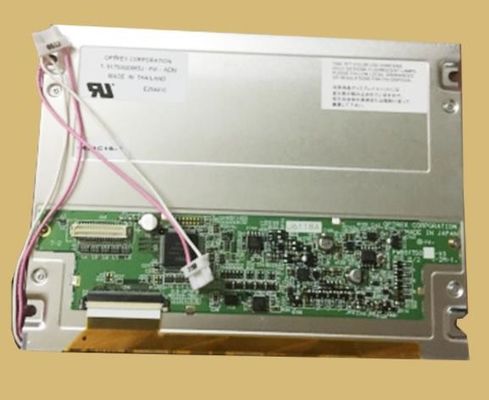

Product Details:
|
| BRAND: | Kyocera | MODEL NUMBER: | T-51750GD065J-LW-ANN |
|---|---|---|---|
| SIZE: | 6.5INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 600 Cd/m² (Typ.) | Screen Type: | LCM , A-Si TFT-LCD |
| Backlight: | 8S2P×2CN WLED , No Driver | TEMPERATURE RANGE: | Storage Temp.: -25 ~ 85 °C |
| High Light: | WLED Industrial TFT Display,LCD Industrial TFT Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| T-51750GD065J-LW-ANN | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -25 ~ 85 °C | - |
| Panel Size : | 6.5 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.069×0.207 mm | 0.207×0.207 mm [122PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 132.48×99.36 mm | 135.46×101.9 mm | 158×120.36 mm | 10.75 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (4-R1.75) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 230g (Typ.) | Antireflection | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 600 cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 55/55/30/55 (Typ.)(CR≥10) | 6 o'clock | 15/16 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 5570K | 262K (6-bit) | X:0.330; Y:0.370 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 41% | 55% | 43% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 43% | 31% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.43 (Max.)(5 points) | ||
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 240/180mA (Typ.)(ICC) | 3.3/5.0V (Typ.)(VCC) | - | ||||
| Voltage for Display Signals : | NA≤VIL≤0.8V; 2.4V≤VIH≤5.5V | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF9B-31P-1V | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010F | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Top and Bottom) | 2 strings × 2CN | 8S2P×2CN | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 35mA (Typ.) | 28.8/32V (Typ./Max.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | SHLP-06V-S-B | 2 pcs | 1.0 mm | 6 pins | BLE-6PINS-AANNCC | |
