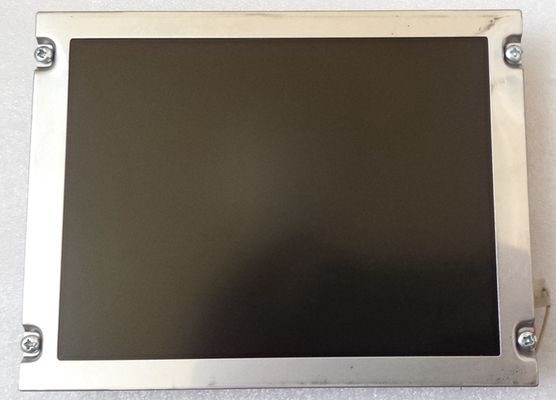

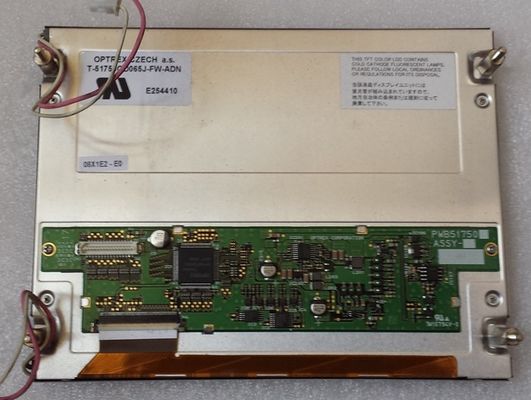

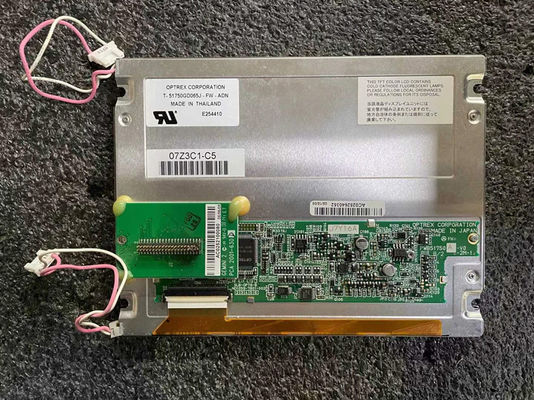

Product Details:
|
| MODEL NUMBER: | T-51750GD065J-FW-AFN | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 6.5INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector |
| Light Source: | CCFL [2 Pcs] , 50K Hours , W/O Driver | TEMPERATURE RANGE: | Operating Temperature: -25 ~ 75 °C |
| High Light: | WLED Industrial TFT Display,LCD Industrial TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | T-51750GD065J-FW-AFN | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 6.5 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -25 ~ 75 °C | ST Temperature | -25 ~ 85 °C |
| Vibration Level | 1.0G (9.8 m/s²) | RoHS |
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 15/16 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 55/55/30/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.320; Wy:0.320 | Support Color | 262K (6-bit) |
| Color Temperature | 6173K | White Uniformity | 1.43 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 39% | sRGB | 54% coverage |
| Adobe RGB | 41% coverage | DCI-P3 | 41% coverage | |
| Rec.2020 | 29% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.069×0.207 mm | Pixel Pitch(W×H) | 0.207×0.207 mm [122PPI] | |
| Physical Size : | Active Viewing | 132.48(W)×99.36(H) mm | Overall Dim. | 158(W)×120.36(H) mm |
| Bezel Opening | - | Overall Depth | 10.75 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Other Detail : | Mass | 190g (Typ.) | Surface | Antiglare |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Signal Electrical : | Input Current | 240/180mA (Typ.)(ICC) | Input Voltage | 3.3/5.0V (Typ.)(VCC) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.8V; 2.4V≤VIH≤5.5V | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF9B-31P-1V | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010F | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable | Amount | 2 pcs | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 6.0/7.0mA (Typ./Max.) | Input Voltage | 320V (Typ.) | ||
| Frequency | - | Turn-on Voltage | 520V (Max.) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-02(8.0)VS-1N | 2 pcs | 8.0 mm | 2 pins | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
