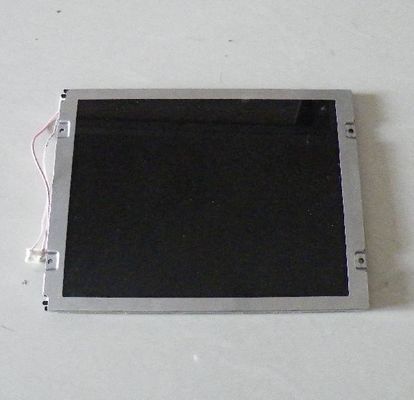

T-51638D084-FW-A-AA Kyocera 8.4INCH LCM 640×480RGB 450NITS CCFL TTL INDUSTRIAL LCD DISPLAY

T-51638D084-FW-A-AA Kyocera 8.4INCH LCM 640×480RGB 450NITS CCFL TTL INDUSTRIAL LCD DISPLAY
T-51638D084-FW-A-AA Kyocera 8.4INCH LCM 640×480RGB 450NITS CCFL TTL INDUSTRIAL LCD DISPLAY T-51638D084-FW-A-AA Kyocera 8.4INCH LCM 640×480RGB 450NITS CCFL TTL INDUSTRIAL LCD DISPLAY T-51638D084-FW-A-AA Kyocera 8.4INCH LCM 640×480RGB 450NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Large Image :  T-51638D084-FW-A-AA Kyocera 8.4INCH LCM 640×480RGB 450NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: T-51638D084-FW-A-AA
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 50PCS
Contact Now

T-51638D084-FW-A-AA Kyocera 8.4INCH LCM 640×480RGB 450NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Description
BRAND: Kyocera MODEL NUMBER: T-51638D084-FW-A-AA
SIZE: 8.4INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 450 Cd/m² (Typ.) Interface Type: CMOS (1 Ch, 6-bit) 31 Pins Connector
Light Source: CCFL [2 Pcs] , 50K Hours , W/O Driver TEMPERATURE RANGE: Operating Temperature: 0 ~ 60 °C
Highlight:

WLED Industrial TFT Display

,

LCD Industrial TFT Display

OPTREX T-51638D084-FW-A-AA Application Details

Basic Info :
Panel Brand

T-51638D084-FW-A-AAPanel Model
Diagonal Size
8.4"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
AA084VC02
Reliability :
Operating Temp.
0 ~ 60 °C
Storage Temp.
-20 ~ 65 °C
RoHS State

1.0G (9.8 m/s²)Vibration Rating



OPTREX T-51638D084-FW-A-AA Mechanical Details

Pixel Features :
Pixel Format
640(RGB)×480, VGA
Dot Pitch
0.089×0.267 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.267×0.267 mm (H×V) [95PPI]
Mechanical Size :
Display Area
170.88×128.16 mm (H×V)
Bezel Area
174.9×132.2 mm (H×V)
Outline Dim.
199.5×149 mm (H×V)
Outline Depth
11.5±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes (4-Φ3.4) on left, right bezel
Other Features :
Weight
360g (Typ.)
Surface
Antiglare, Hard coating (3H)



OPTREX T-51638D084-FW-A-AA Optical Details

Basic Information :
Brightness
450 cd/m² (Typ.)
Contrast Ratio
450:1 (Typ.) (Transmissive)
Viewing Angle
65/65/50/60 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
8/27 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.324
Color Numbers
262K (6-bit)
Color Temperature
6527K
Uniformity
-
1931 Color Gamlt :
NTSC Ratio
39%
sRGB
53% coverage
Adobe RGB
41% coverage
DCI-P3
40% coverage
Rec.2020
29% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



PTREX T-51638D084-FW-A-AA Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (180°)



OPTREX T-51638D084-FW-A-AA Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
2 pcs
Life Time
50K(Min.) (Hours)
Replacement
Replaceable
Lamp Shape
Straight
Position
Edge light type (Top and Bottom)
Lamp Electrical :
Voltage Input
450V (Typ.)
Current Input
3.0/6.5/7.0mA (Min./Typ./Max.)
Frequency
30/60KHz (Min./Max.)
Kick-off Voltage
670V (Min.)
Interface Features :
Type
Connector
Position

NoLamp Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
BHR-02(8.0)VS-1N
8.0 mm
2 pins
2 pcs
BLL-2PINS-HL



OPTREX T-51638D084-FW-A-AA Interface Detail

Signal Systerm :
CMOS (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.8V; 2.4V≤VIH≤5.5V
Signal Electrical :
Voltage Input
3.3V (Typ.)(VCC)
Current Input
240/400mA (Typ./Max.)(ICC)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
DF9B-31P-1V
1.0 mm
31 pins
1 pcs
DRGB-31P1C6B-010F
