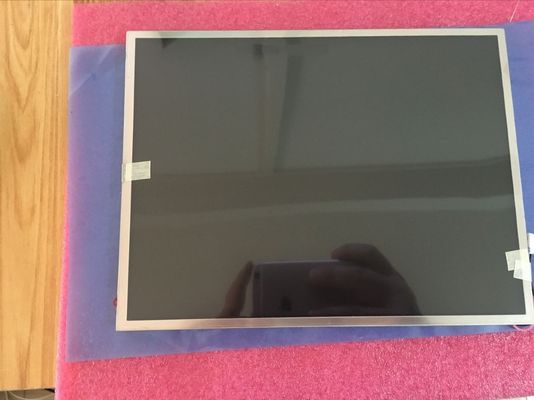

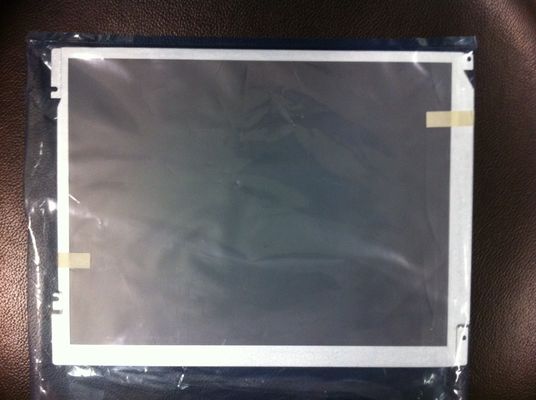

T-51512D121J-FW-A-AC Kyocera 12.1INCH LCM 800×600RGB 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY

T-51512D121J-FW-A-AC Kyocera 12.1INCH LCM 800×600RGB 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY
T-51512D121J-FW-A-AC Kyocera 12.1INCH LCM 800×600RGB 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY T-51512D121J-FW-A-AC Kyocera 12.1INCH LCM 800×600RGB 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY T-51512D121J-FW-A-AC Kyocera 12.1INCH LCM 800×600RGB 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Large Image :  T-51512D121J-FW-A-AC Kyocera 12.1INCH LCM 800×600RGB 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: T-51512D121J-FW-A-AC
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 100PCS
Contact Now

T-51512D121J-FW-A-AC Kyocera 12.1INCH LCM 800×600RGB 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Description
BRAND: Kyocera MODEL NUMBER: T-51512D121J-FW-A-AC
SIZE: 12.1INCH RESOLUTION: 800×600RGB
BRIGHTNESS: 400 Cd/m² (Typ.) Signal Interface: CMOS (1 Ch, 6-bit) , 41 Pins Connector
Lamp Type: 2 Pcs CCFL , 50K Hours , Without Driver TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C
Highlight:

WLED Industrial TFT Display

,

LCD Industrial TFT Display

OPTREX T-51512D121J-FW-A-AC Application Details

Basic Info :
Panel Brand

T-51512D121J-FW-A-ACT-51512D121J-FW-A-AC Kyocera 12.1INCH LCM 800×600RGB 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY 0 1 CompatiblePanel Model
Diagonal Size
12.1"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
AA121SL02
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-20 ~ 80 °C
RoHS State
-
Vibration Rating
1.0G (9.8 m/s²)



OPTREX T-51512D121J-FW-A-AC Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×600, SVGA
Dot Pitch
0.1025×0.3075 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.3075×0.3075 mm (H×V) [82PPI]
Mechanical Size :
Display Area
246×184.5 mm (H×V)
Bezel Area
249.0×187.5 mm (H×V)
Outline Dim.
280×210 mm (H×V)
Outline Depth
12.0 (Typ.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes (4-Φ3.5) on left bezel, right slugs
Other Features :
Weight
720g (Typ.)
Surface
Hard coating (2H), Antireflection



OPTREX T-51512D121J-FW-A-AC Optical Details

Basic Information :
Brightness
400 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
65/65/45/75 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
10/30 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.332; Wy:0.367
Color Numbers
262K (6-bit)
Color Temperature
5500K
Uniformity
1.30 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
39%
sRGB
55% coverage
Adobe RGB
41% coverage
DCI-P3
41% coverage
Rec.2020
29% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



OPTREX T-51512D121J-FW-A-AC Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (180°)



OPTREX T-51512D121J-FW-A-AC Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
2 pcs
Life Time
50K(Min.) (Hours)
Replacement
Replaceable
Lamp Shape
Straight
Position
Edge light type (Top side)
Lamp Electrical :
Voltage Input
540V (Typ.)
Current Input
3.0/6.0/6.5mA (Min./Typ./Max.)
Frequency
30/60KHz (Min./Max.)
Kick-off Voltage
1000/1200/1290V (Min.)(Ta=+25/0/-20℃)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
BHR-04VS-1
4.0 mm
4 pins
1 pcs
BLL-4PINS-HHNL



OPTREX T-51512D121J-FW-A-AC Interface Detail

Signal Systerm :
CMOS (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.8V; 2.0V≤VIH≤5.25V
Signal Electrical :
Voltage Input
3.3/5.0V (Typ.)(VCC)
Current Input
340/220mA (Typ.)(ICC)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
DF9B-41P-1V
1.0 mm
41 pins
1 pcs
DRGB-41P1C6B-010G



OPTREX T-51512D121J-FW-A-AC Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
10 pcs / box 10.0 Kgs 451×413×381 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



T-51512D121J-FW-A-AC Kyocera 12.1INCH LCM 800×600RGB 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY 1T-51512D121J-FW-A-AC Kyocera 12.1INCH LCM 800×600RGB 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY 2
