G170J1-LE1 Innolux 17.0" 1920(RGB)×1200 600 cd/m² INDUSTRIAL LCD DISPLAY

G170J1-LE1 Innolux 17.0" 1920(RGB)×1200 600 cd/m² INDUSTRIAL LCD DISPLAY
G170J1-LE1 Innolux 17.0" 1920(RGB)×1200 600 cd/m² INDUSTRIAL LCD DISPLAY G170J1-LE1 Innolux 17.0" 1920(RGB)×1200 600 cd/m² INDUSTRIAL LCD DISPLAY G170J1-LE1 Innolux 17.0" 1920(RGB)×1200 600 cd/m² INDUSTRIAL LCD DISPLAY G170J1-LE1 Innolux 17.0" 1920(RGB)×1200 600 cd/m² INDUSTRIAL LCD DISPLAY G170J1-LE1 Innolux 17.0" 1920(RGB)×1200 600 cd/m² INDUSTRIAL LCD DISPLAY

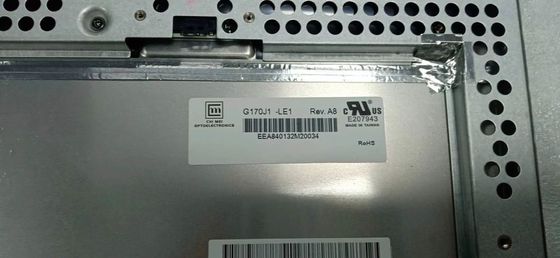

Large Image :  G170J1-LE1 Innolux 17.0" 1920(RGB)×1200 600 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: G170J1-LE1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

G170J1-LE1 Innolux 17.0" 1920(RGB)×1200 600 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G170J1-LE1 BRAND: INNOLUX
SIZE: 17.0INCH BRIGHTNESS: 600 Cd/m² (Typ.)
Lamp Type: WLED RESOLUTION: 1920(RGB)×1200 (WUXGA) 133PPI
VIEWING ANGLEG: 88/88/88/88 (Typ.)(CR≥10 TEMPERATURE RANGE: Storage Temp.: -40 ~ 85 °C Operating Temp.: -20 ~ 80 °C
High Light:

WVGA Industrial Lcd Panel

,

Capacitive TFT Touch Panel

,

VGA Lcd Display Panels

Innolux G170J1-LE1 Application Details

Basic Information :
Brand

G170J1-LE1Model
Type
a-Si TFT-LCD , LCM
Used For

17.0 inchScreen Size
Alias
-
Environment :
Storage Temp.
-40 ~ 85 °C
Operating Temp.
-20 ~ 80 °C
RoHS

1.5G (14.7 m/s²)Vibration



Innolux G170J1-LE1 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1200, WUXGA
Dot Pitch(mm)
0.0635×0.1905 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1905×0.1905 (H×V) [133PPI]
Mechanical Size :
Active Area(mm)
365.76(H) × 228.6(V)
Bezel Area(mm)
369.0(H) × 231.8(V)
Outline Dim.(mm)
386.8(H) × 250.8(V)
Depth(mm)
18.6/19.0 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
16:10 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M4) on left, right bezel



Innolux G170J1-LE1 Optical Details

Basic Information :
Luminance(cd/m²)
600 (Typ.)
Contrast Ratio
2000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
Super MVA, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
20/9 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.20/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
70%
sRGB
92% coverage
Adobe RGB
72% coverage
DCI-P3
72% coverage
Rec.2020
52% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux G170J1-LE1 Electronics Details

Frame Rate :
60Hz
Reverse Scan :
No
Total Consumption:
25.45W (Typ.)



Innolux G170J1-LE1 Interface Detail

Signal Electrical :
Voltage Supply
5.0V (Typ.)
Current Supply
1.05±0.1mA
Consumption
5.25W (Typ.)
Signal Type :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
molex
501864-3091
0.5 mm
30 pins
1 pcs
LVDS-30P2C8B-180D



Innolux G170J1-LE1 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
30K(Typ.) (Hours)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
molex
43650-1013
3.0 mm
10 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
6.0/12.0/16.0V (Min./Typ./Max.)
Current Supply
1.68±0.1A
Consumption
20.2W (Typ.)



Innolux G170J1-LE1 Packing Details

Package Box : Quantity Weight Box Size
8 pcs / box 21.1 Kgs 615×515×320 mm (L×W×H)





FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
