KG057QV1CA-G050 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY

KG057QV1CA-G050 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY
KG057QV1CA-G050 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY KG057QV1CA-G050 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY KG057QV1CA-G050 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY

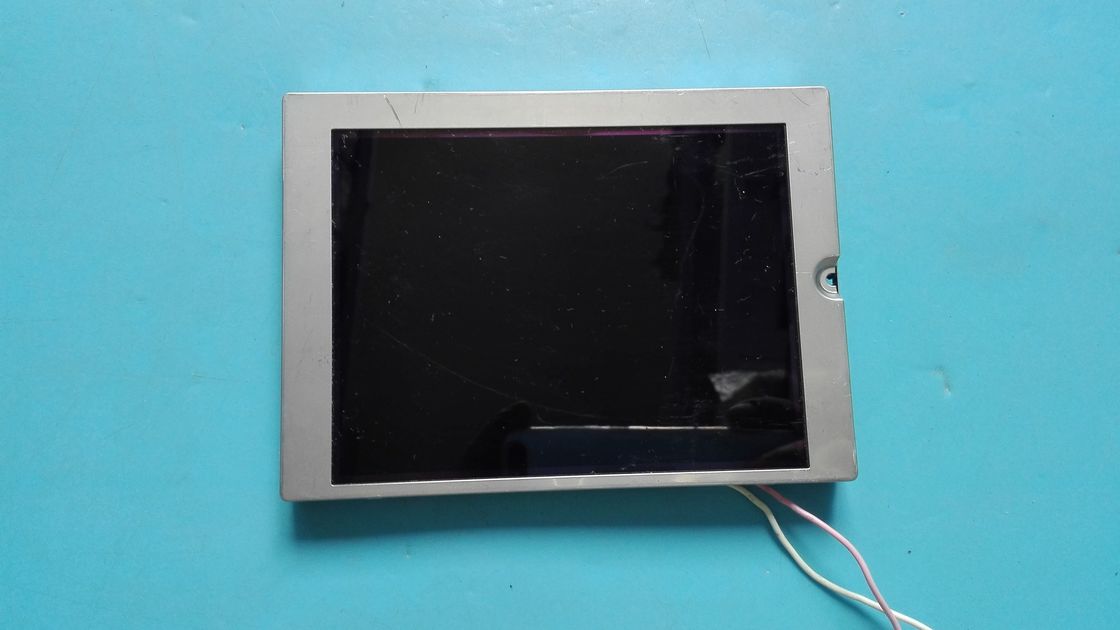

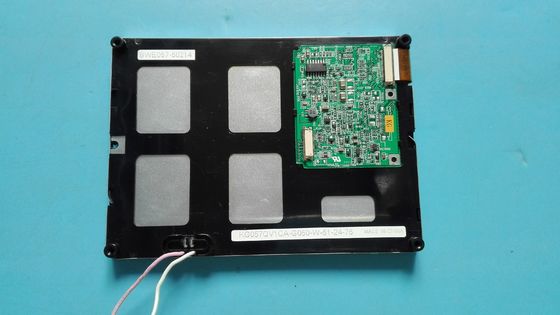

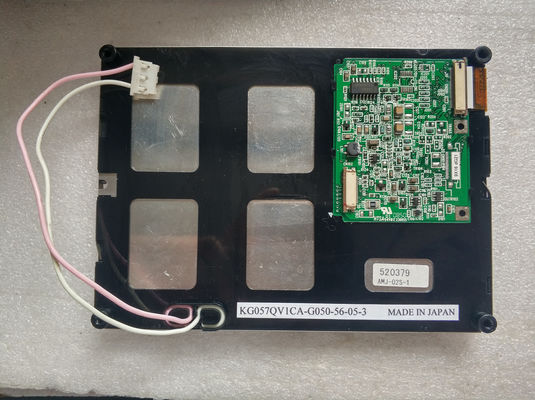

Large Image :  KG057QV1CA-G050 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: KG057QV1CA-G050
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 300PCS
Contact Now

KG057QV1CA-G050 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY

Description
BRAND: Kyocera MODEL NUMBER: KG057QV1CA-G050
SIZE: 5.7INCH RESOLUTION: 320×240RGB
BRIGHTNESS: 220 Cd/m² (Typ.) Screen Type: LCM , FSTN-LCD
Backlight: 1 Pcs CCFL , 58K Hours TEMPERATURE RANGE: Operating Temp.: 0 ~ 60 °C
Highlight:

CCFL CSTN LCD Panel

,

VGA Lcd Video Panel

Kyocera KG057QV1CA-G050 Application Details

Basic Info :
Panel Brand

KG057QV1CA-G050Panel Model
Diagonal Size
5.7"
Application

FSTN-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
0 ~ 60 °C
Storage Temp.
-
RoHS State

-Vibration Rating



Kyocera KG057QV1CA-G050 Mechanical Details

Pixel Features :
Pixel Format
320×240, QVGA
Dot Pitch
0.360×0.360 mm (H×V)
Configuration
Rectangle
Pixel Pitch
0.360×0.360 mm (H×V) [70PPI]
Mechanical Size :
Display Area
115.2×86.4 mm (H×V)
Bezel Area
-
Outline Dim.
144×104.8 mm (H×V)
Outline Depth
9.0/13.2 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Rear mounting poles (4-Φ2.6)
Other Features :
Weight
175g
Surface
Glare (Haze 0%)



Kyocera KG057QV1CA-G050 Optical Details

Basic Information :
Brightness
220 cd/m² (Typ.)
Contrast Ratio
40:1 (Typ.) (Transmissive)
Viewing Angle
45/45/30/40 (Typ.)(CR≥2)
Optical Mode
STN, Transmissive
Viewing Direction
-
Response Time
500 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
-
Color Numbers
Monochrome



Kyocera KG057QV1CA-G050 Electronics Details

Frame Frequency :
75Hz
Reverse Scan :
No
Driving Method :
Duty: 1/240



Kyocera KG057QV1CA-G050 Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
1 pcs
Life Time
58K(Typ.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
-
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration



3 pins
1 pcs
BLL-3PINS-HNL



Kyocera KG057QV1CA-G050 Interface Detail

Signal Electrical :
Voltage Input
3.3/5.0V (Typ.)(VDD)
Current Input
-
Interface Features :
Type
Connector
Position
-



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



KG057QV1CA-G050 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY 0KG057QV1CA-G050 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY 1
