G150XGE-L07 INNOLUX 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY

G150XGE-L07 INNOLUX 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY
G150XGE-L07 INNOLUX 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY G150XGE-L07 INNOLUX 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY G150XGE-L07 INNOLUX 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY

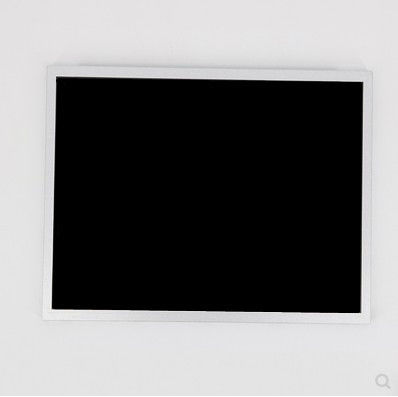

Large Image :  G150XGE-L07 INNOLUX 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: G150XGE-L07
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

G150XGE-L07 INNOLUX 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G150XGE-L07 BRAND: INNOLUX
SIZE: 15.0 Inch BRIGHTNESS: 350CD/M2
Lamp Type: WLED RESOLUTION: 1024(RGB)×768 [XGA] 85PPI
VIEWING ANGLEG: 80/80/70/70 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -40 ~ 70 °C
Highlight:

WVGA Industrial Lcd Panel

,

Capacitive TFT Touch Panel

,

VGA Lcd Display Panels

Innolux G150XGE-L07 Application Details

Basic Info :
Panel Brand

G150XGE-L07Panel Model
Diagonal Size
15.0"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
-30 ~ 70 °C
Storage Temp.
-40 ~ 70 °C
RoHS State

1.5G (14.7 m/s²)Vibration Rating



Innolux G150XGE-L07 Mechanical Details

Pixel Features :
Pixel Format
1024(RGB)×768, XGA
Dot Pitch
0.099×0.297 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :
Display Area
304.128×228.096 mm (H×V)
Bezel Area
307.4×231.3 mm (H×V)
Outline Dim.
326.5×253.5 mm (H×V)
Outline Depth
11.5±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
1.08/1.13Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



Innolux G150XGE-L07 Optical Details

Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
80/80/70/70 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
-
Response Time
5/11 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6485K
Uniformity
1.25/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
61%
sRGB
81% coverage
Adobe RGB
63% coverage
DCI-P3
63% coverage
Rec.2020
45% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux G150XGE-L07 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (180°)
Power Consumption :
8.1W (Max.)



Innolux G150XGE-L07 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
50K(Min.) (Hours)
Replacement
Replaceable
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
E&T
3808K-F05N-03L
1.25 mm
5 pins
1 pcs

Driver Electrical :
Voltage Input
12.0±1.2V
Current Input
0.45±0.1A
Consumption
4.9W (Max.)



Innolux G150XGE-L07 Interface Detail

Signal Systerm :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
590/690mA (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
E&T
3804K-F20N-10L
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-060D



Innolux G150XGE-L07 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
15 pcs / box 18 Kgs

511×420×360 mm





 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
