G150X1-L03 CMO 15.0" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY

G150X1-L03 CMO 15.0" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY
G150X1-L03 CMO 15.0" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY G150X1-L03 CMO 15.0" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY G150X1-L03 CMO 15.0" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY

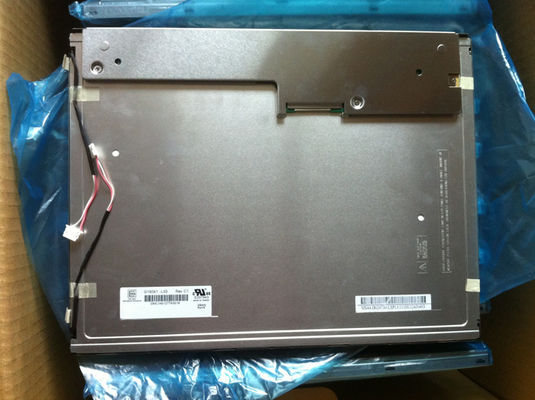

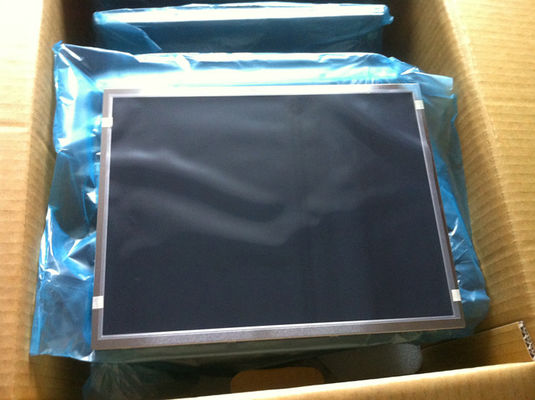

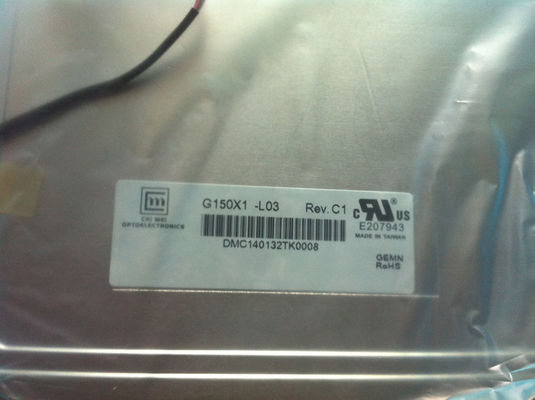

Large Image :  G150X1-L03 CMO 15.0" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: CMO
Certification: ISO9001
Model Number: G150X1-L03
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS

G150X1-L03 CMO 15.0" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G150X1-L03 BRAND: CMO
SIZE: 15.0 Inch BRIGHTNESS: 450CD/M2
Lamp Type: WLED RESOLUTION: 1024(RGB)×768, XGA, 85PPI
VIEWING ANGLEG: 80/80/80/80 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C
High Light:

WVGA Industrial Lcd Panel

,

Capacitive TFT Touch Panel

,

VGA Lcd Display Panels

CMO G150X1-L03 Application Details

Basic Detail : Manufacturer   Model Name G150X1-L03
Panel Type a-Si TFT-LCD , LCM Another Name -
Panel Size 15.0 inch Designed For



Maximum Ratings : OP Temperature -30 ~ 80 °C ST Temperature -40 ~ 85 °C
Vibration Level 1.5G (14.7 m/s²) RoHS





CMO G150X1-L03 Optical Details

Basic Information : Luminance 450 cd/m² (Typ.) Contrast Ratio 700 : 1 (Typ.) (Transmissive)
Good View at - Response Speed 8/17 (Typ.)(Tr/Td) (ms)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)  Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.2M (6-bit + FRC)
Color Temperature 6485K White Uniformity 1.25/1.40 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 57% sRGB 78% coverage
Adobe RGB 59% coverage DCI-P3 59% coverage
Rec.2020 42% coverage Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





CMO G150X1-L03 Mechanical Details

Pixel Features : Number of Pixel 1024(RGB)×768 [XGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.099×0.297 mm Pixel Pitch(W×H) 0.297×0.297 mm [85PPI]
Physical Size : Active Viewing 304.128(W)×228.096(H) mm Overall Dim. 326.5(W)×253.5(H) mm
Bezel Opening 307.4(W)×231.3(H) mm Overall Depth 13.85±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style
Fixation : Side mounting holes (4-M3) on left, right bezel
Other Detail : Mass 0.97/1.00Kgs (Typ./Max.) Surface Glare (Haze 0%), Hard coating (3H)



CMO G150X1-L03 Electronics Details

Refresh Rate : 60Hz
Reverse Scan : No



CMO G150X1-L03 Interface Details

Signal Electrical : Input Current 750mA (Typ.) Input Voltage 3.3V (Typ.)
Consumption - Signal Interface LVDS (1 ch, 8-bit)
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
HRS DF14H-20P-1.25H 1 pcs 1.25 mm 20 pins LVDS-20P1C8B-020A



CMO G150X1-L03 Lightting Details

Lamp Features: Lamp Shape Straight Lamp Type CCFL Position Edge light type (Top and Bottom)
Exchange Replaceable Amount 2 pcs Life 50K(Min.) (Hours)
Lamp Electrical : Input Current 8.0mA (Typ.) Input Voltage 580±58V
Frequency 40/80KHz (Min./Max.) Turn-on Voltage -
Consumption 9.28W (Typ.)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JST BHR-03VS-1 2 pcs 4.0 mm 3 pins BLL-3PINS-HNL
Backlight Driver : No



CMO G150X1-L03 Packing Details

Package Box : Amount Size (L×W×H) Weight
10 pcs / box 511×420×360 mm 13 Kg
