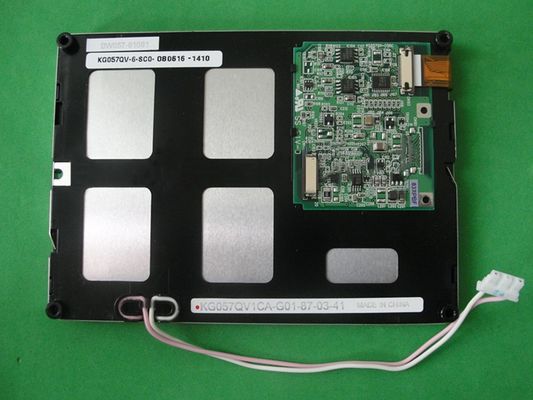

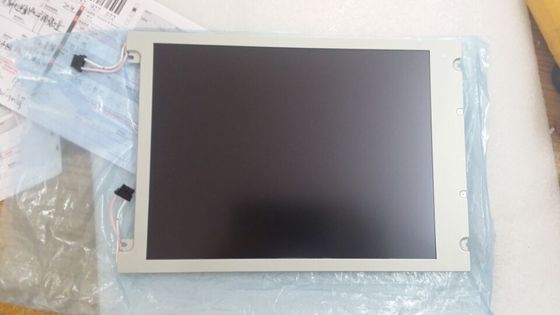

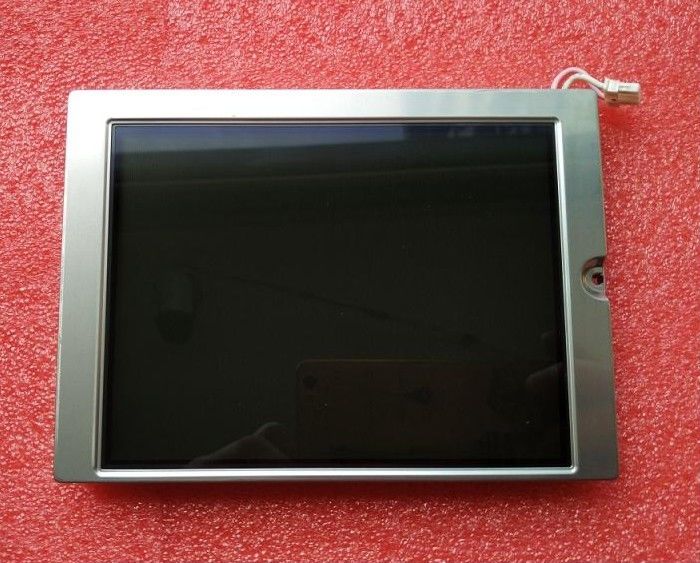

Product Details:
|
| BRAND: | Kyocera | MODEL NUMBER: | KG057QV1CA-G01 |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 260 Cd/m² (Typ.) | Interface Type: | Parallel Data (4-bit) 20 Pins Connector |
| Light Source: | CCFL [1 Pcs] , 58K Hours , Optional | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 60 °C |
| Highlight: | CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| KG057QV1CA-G01 | STN-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 60 °C | -20 ~ 60 °C | - | ||
| Designed For : |
|
|||
| Panel Size : | 5.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320×240, QVGA | Rectangle | 0.360×0.360 mm | 0.360×0.360 mm [70PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 115.18×86.38 mm | 119.4×90.6 mm | 144×104.8 mm | 9.0/13.2 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Rear mounting poles (4-Φ2.6) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 175g | Glare (Haze 0%) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 260 cd/m² (Typ.) | STN, Blue mode (Negative), Transmissive | 4:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 45/45/20/45 (Typ.)(CR≥2) | - | 210/130 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 4434K | Monochrome | X:0.360; Y:0.340 |
| Frame Rate : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 41.5/28.5mA (Typ.)(3.3V/5.0V)(IDD) | 3.3/5.0V (Typ.)(VDD) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel Data (4-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| Kyocera Elco | 08-6210-020-340-800 | 1 pcs | 0.5 mm | 20 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | - | 1 pcs | 58K(Typ.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 3.0/4.0/6.0mA (Min./Typ./Max.) | 330V (Typ.) | |||||
| Turn-on Voltage | Lamp Frequency | |||||
| 530/795V (Max.)(Ta=+25/0℃) | 40/100KHz (Min./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | Optional | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
