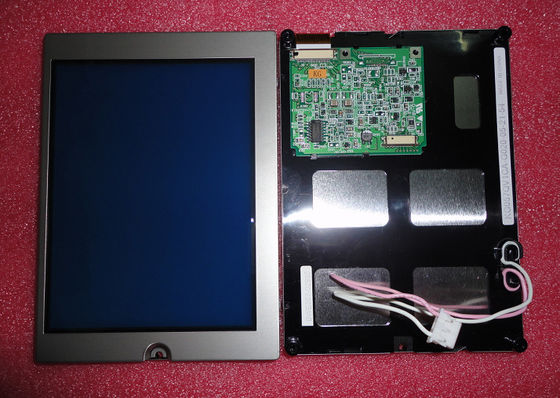

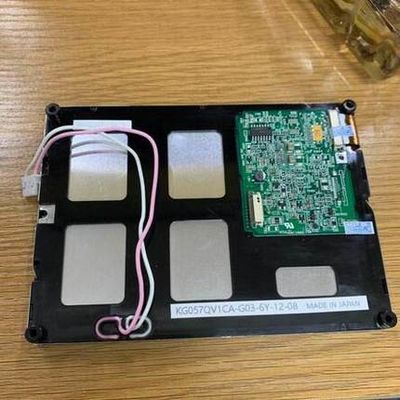

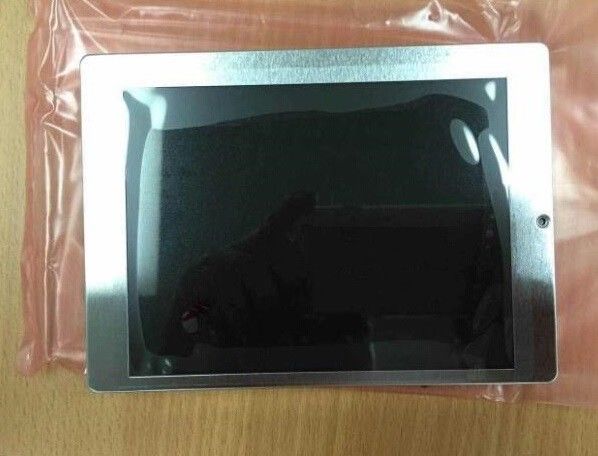

KG057QV1CA-G00 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY

KG057QV1CA-G00 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY
KG057QV1CA-G00 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY KG057QV1CA-G00 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY KG057QV1CA-G00 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY KG057QV1CA-G00 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY

Large Image :  KG057QV1CA-G00 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: KG057QV1CA-G00
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 500PCS
Contact Now

KG057QV1CA-G00 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY

Description
BRAND: Kyocera MODEL NUMBER: KG057QV1CA-G00
SIZE: 5.7INCH RESOLUTION: 320×240RGB
BRIGHTNESS: 220 Cd/m² (Typ.) Interface Type: Parallel Data (4-bit) , 20 Pins Connector
Light Source: CCFL [1 Pcs] , 58K Hours , Optional TEMPERATURE RANGE: Operating Temperature: 0 ~ 60 °C
Highlight:

CCFL CSTN LCD Panel

,

VGA Lcd Video Panel

Kyocera KG057QV1CA-G00 Application Details

Basic Detail :
Manufacturer

KG057QV1CA-G00Model Name
Panel Type
FSTN-LCD , LCM
Another Name
-
Panel Size
5.7 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 60 °C
ST Temperature
-20 ~ 60 °C
RoHS

-Vibration Level



Kyocera KG057QV1CA-G00 Optical Details

Basic Detail :
Luminance
220 cd/m² (Typ.)
Contrast Ratio
10:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
210/130 (Typ.)(Tr/Td) ms
Viewing Angle
45/45/20/45 (Typ.)(CR≥2)
Operating Mode
STN, Black/White (Negative), Transmissive
Color Performance :
Chromaticity
Wx:0.310; Wy:0.300
Support Color
Monochrome
Color Temperature
6989K
White Variation
-



Kyocera KG057QV1CA-G00 Mechanical Details

Pixel Features :
Number of Pixel
320×240, QVGA
Arrangement
Rectangle
Dot Pitch(W×H)
0.360×0.360 mm
Pixel Pitch(W×H)
0.360×0.360 mm [70PPI]
Physical Size :
Active Viewing
115.18(W)×86.38(H) mm
Overall Dim.
144(W)×104.8(H) mm
Bezel Opening
119.4(W)×90.6(H) mm
Overall Depth
9.0/13.2 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Rear mounting poles (4-Φ2.6)
Other Detail :
Mass
175g
Surface
Glare (Haze 0%)



Kyocera KG057QV1CA-G00 Electronics Details

Refresh Rate :
75Hz
Reverse Scan :
No
Driving Method :
Duty: 1/240



Kyocera KG057QV1CA-G00 Interface Detail

Signal Electrical :
Input Current
41.5/28.5mA (Typ.)(3.3V/5.0V)(IDD)
Input Voltage
3.3/5.0V (Typ.)(VDD)
Consumption
-
Signal Interface
Parallel Data (4-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
Kyocera Elco
08-6210-020-340-800
0.5 mm
20 pins
1 pcs



Kyocera KG057QV1CA-G00 Lightting Details

Lamp Features :
Lamp Type
CCFL
Amount
1 pcs
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
58K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
330V (Typ.)
Input Current
3.0/4.0/6.0mA (Min./Typ./Max.)
Frequency
40/100KHz (Min./Max.)
Turn-on Voltage
530/795V (Max.)(Ta=+25/0℃)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
BHR-03VS-1
4.0 mm
3 pins
1 pcs
BLL-3PINS-HNL
Backlight Driver :
Optional
